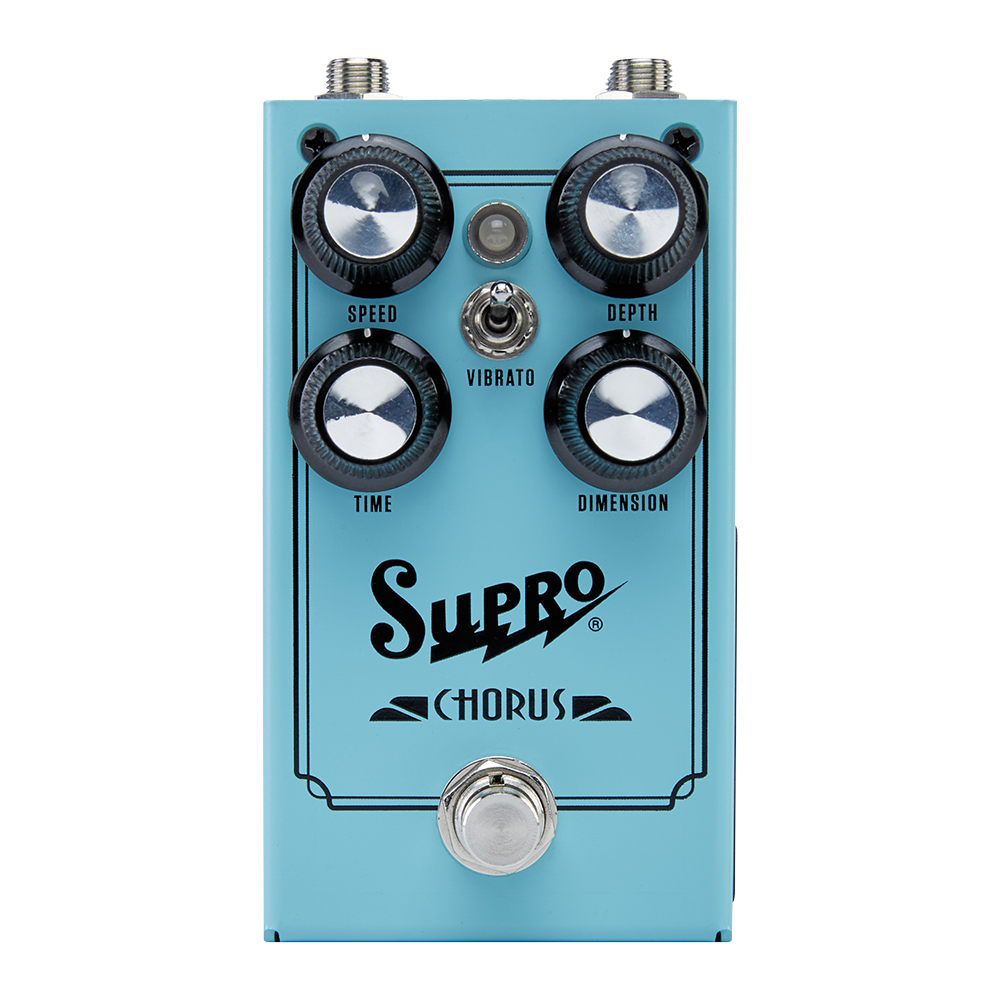

Supro Pedal Chorus 1307

ANALOG CHORUS WITH DIMENSION

The Supro Chorus is an all-analog, full-stereo modulation stompbox that uses a pair of genuine MN3007 Bucket Brigade IC chips to deliver the thickest, most luscious Chorus effect possible in pedal form, all while maintaining exceptional headroom. In addition to Speed and Depth knobs, the Supro Chorus features a Time control that increases the delay time on one side of the stereo field while shortening the delay time on the other side. Further increasing the available drama is a Dimension control, which mixes the stereo channels into one another for a mesmerizing intermingling of the two delay lines being modulated in opposite directions. A Vibrato switch removes the clean pass-through signal, allowing for pure pitch modulation with the Dimension knob, introducing a more complex, double vibrato effect. Runs on standard 9VDC.

FEATURES


KNOB-BY-KNOB
Depth: Sets the amount of modulation
Speed: Sets the rate of modulation
Time: Changes the delay time of both chorus channels in opposite directions
Dimension: Mixes the two Chorus channels together
Vibrato: Eliminates the clean signal from the effect for pure pitch modulation


SWIMMING IN SOUND DESIGN
Featuring genuine Bucket Brigade IC chips, the Supro Chorus offers unimaginably luscious soundscapes, especially when played through a stereo amp setup.

SPECS

MODEL

• MODEL NAME Chorus
• SKU 1307
• FUNCTION Analog Chorus with Dimension
• CATEGORY 1 Modulation
• CATEGORY 2 -
• EXPRESSION -
• BYPASS Buffered

ELECTRONICS

• POWER 9VDC
• CURRENT DRAW 100mA
• INPUT IMPEDANCE 2.2M
• OUTPUT IMPEDANCE 150ohms

BODY

• FINISH Flat
• LENGTH (IN) 4.9
• WIDTH (IN) 3.2
• HEIGHT (IN) 3.2
• WEIGHT (LBS) 1
