Mark Bass Little Mark Tube 800 MBH110023N

SKU MBH110023z
Rs. 84,000.00
Rs. 84,000.00

MDC

Mark Bass Little Mark Tube 800 MBH110023N

SKU MBH110023z
Rs. 84,000.00
Mark Bass Little Mark Tube 800 MBH110023N

Frequently Bought Together

Total priceRs. 188,000.00

Product Description

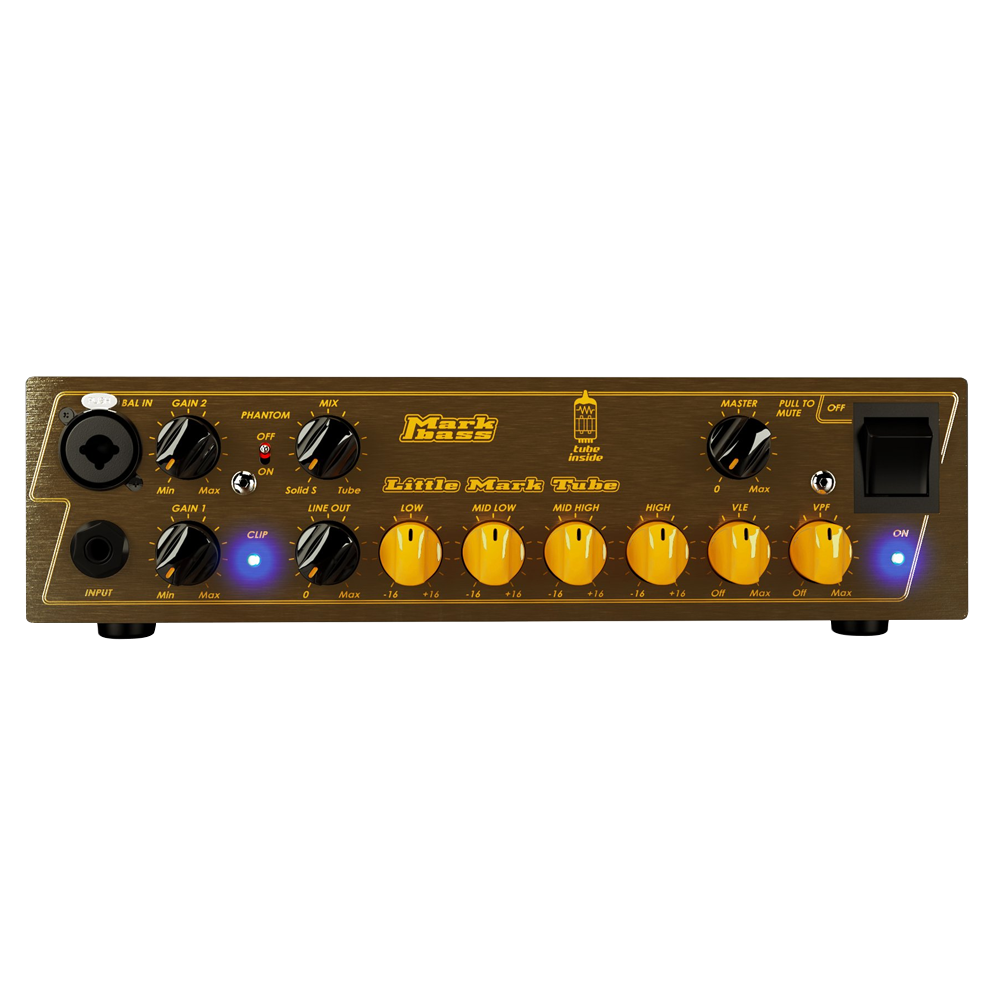

The Little Mark Tube gives the warmth and richness of a tube preamp, or the clean attack of a solid state preamp… or a mix of both! On the front panel there are also two inputs with separate gain controls: one 1/4” jack, and one combo jack that accepts either a XLR or 1/4” cable. Additional features include switchable 48V phantom power for the XLR input, solid-state/tube mix control, four bands of equalization, VLE and VPF filters, line out level control, pre-post EQ switch for the XLR out (on rear panel), and mute control (push-pull on the master knob).

INPUTS
  • INPUT 1: impedance 500 Kohm, max. voltage 15 Vpp
  • INPUT 2: (Balanced XLR/1/4" combo) with Phantom Power
  • BALANCED: impedance 500 Kohm, max. voltage 15 Vpp, phantom power 48V
  • EFFECT RETURN: impedance 33 Kohm, max. voltage 10 Vpp
CONTROLS
  • GAIN 1: -60 dB to +23 dB range
  • GAIN 2: -60 dB to +23 dB range
  • MIX: mixes tube and solid state gain
  • MASTER VOLUME
  • LINE OUT LEVEL
  • GROUND LIFT (switch on rear panel)
  • PRE/POST EQ (switch on rear panel)
  • MUTE (push/pull on master knob)
  • PHANTOM POWER switch (on INPUT 2 / Balanced)
EQUALIZATION
  • LOW: center frequency 40 Hz; level: ±16 dB
  • LOW MID: center frequency 360 Hz, level: ±16 dB
  • HIGH MID: center frequency 800 Hz, level: ±16 dB
  • HIGH: center frequency 10 kHz, level: ±16 dB
  • VPF (Variable Pre-shape Filter) center frequency 380 Hz
  • VLE (Vintage Loudspeaker Emulator) frequency range 250 Hz-20 kHz
OUTPUTS
  • LINE OUT: balanced XLR, max. voltage 20 Vpp
  • EFFECT SEND: unbalanced, max. voltage 20 Vpp (pre-EQ)
  • TUNER OUT: unbalanced, max. voltage 2 Vpp
  • SPEAKER OUT: speakon/1/4" combo, 1/4"
OTHER
  • WEIGHT: 5.07 lbs / 2.3 Kg
  • WIDTH: 10.87 in. / 27.6 cm
  • DEPTH: 9.84 in. / 25 cm
  • HEIGHT: 3.27 in. / 8.3 cm
  • OUTPUT POWER: 500W RMS @ 4 ohms / 300W RMS @ 8 ohms
  • POWER REQUIREMENT: 100/120V; 230V; 240V - 50/60Hz
