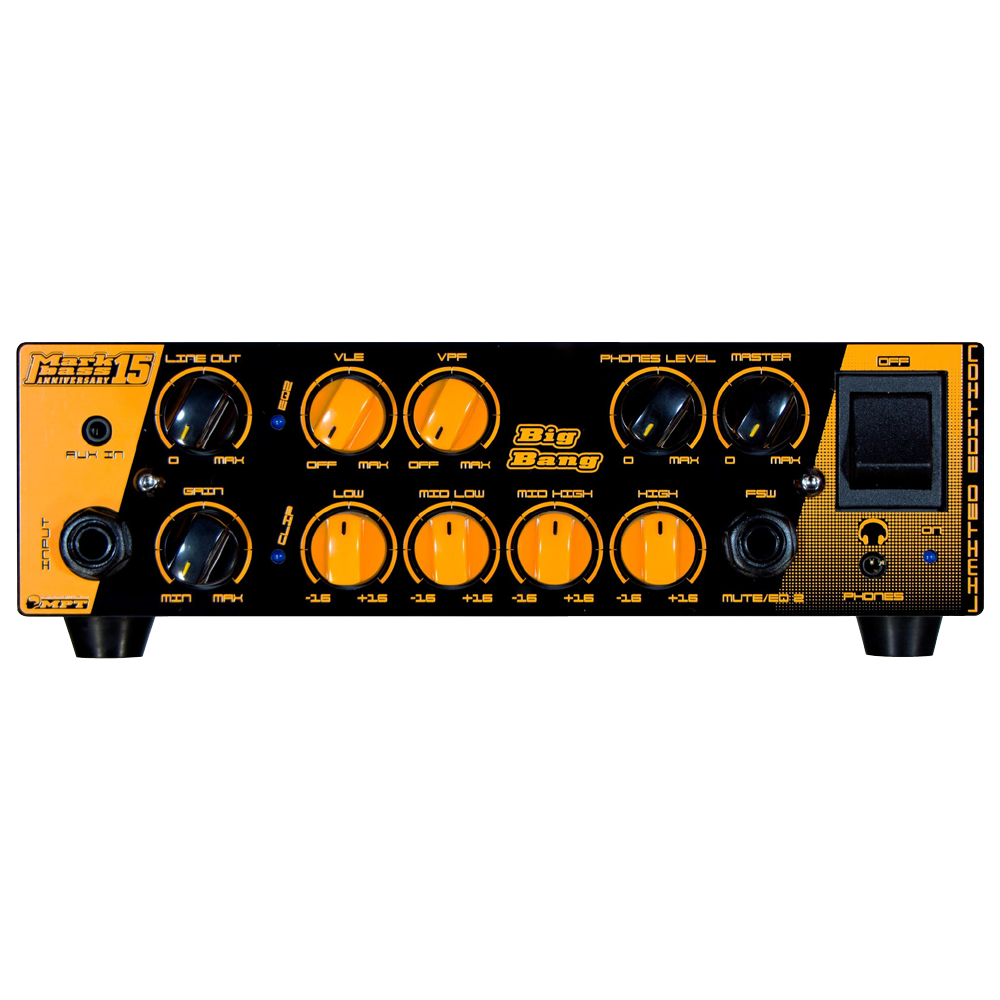

Mark Bass Big Bang 15th Anniversary MBH110052Z

The Big Bang 15th Anniversary offers the same features as the standard Big Bang, plus a very cool amazing look designed for this important milestone!

INPUTS

• INPUT: impedance 2 Mohm, max. voltage 15 Vpp
• AUX IN: impedance 33 Kohm, max. voltage 10 Vpp
• EFFECT RETURN: impedance 33 Kohm, max. voltage 10 Vpp

CONTROLS

• GAIN
• MASTER VOLUME
• LINE OUT LEVEL
• HEADPHONE LEVEL CONTROL
• GROUND LIFT (switch on rear panel)
• PRE/POST EQ (switch on rear panel) MUTE (footswitch)

EQUALIZATION

• LOW: center frequency: 40 Hz; level: ±16 dB
• LOW MID: center frequency: 360 Hz, level: ±16 dB
• HIGH MID: center frequency: 800 Hz, level: ±16 dB
• HIGH: center frequency: 10 kHz, level: ±16 dB
• FILTER SECTION (with footswitch):
• VPF (Variable Pre-shape Filter): center frequency 380 Hz
• VLE (Vintage Loudspeaker Emulator): frequency range 250 Hz-20 kHz

OUTPUTS

• LINE OUT: balanced XLR, max. voltage 20 Vpp
• EFFECT SEND: unbalanced, max. voltage 20 Vpp (pre-EQ)
• TUNER OUT: unbalanced, max. voltage 2 Vpp
• SPEAKER OUT: speakon/1/4" combo, jack 1/4"
• HEADPHONE OUT

OTHER

• WEIGHT: 4.63 lbs / 2.1 kg
• WIDTH: 8.86 in. / 22.5 cm
• DEPTH: 9.84 in. / 25 cm
• HEIGHT: 2.95 in. / 7.5 cm
• OUTPUT POWER: 500W RMS @ 4 ohm, 300W RMS @ 8 ohm
• POWER REQUIREMENT: 100/120V; 230V; 240V 50/60Hz (Voltage is factory preset according to region of sale)
