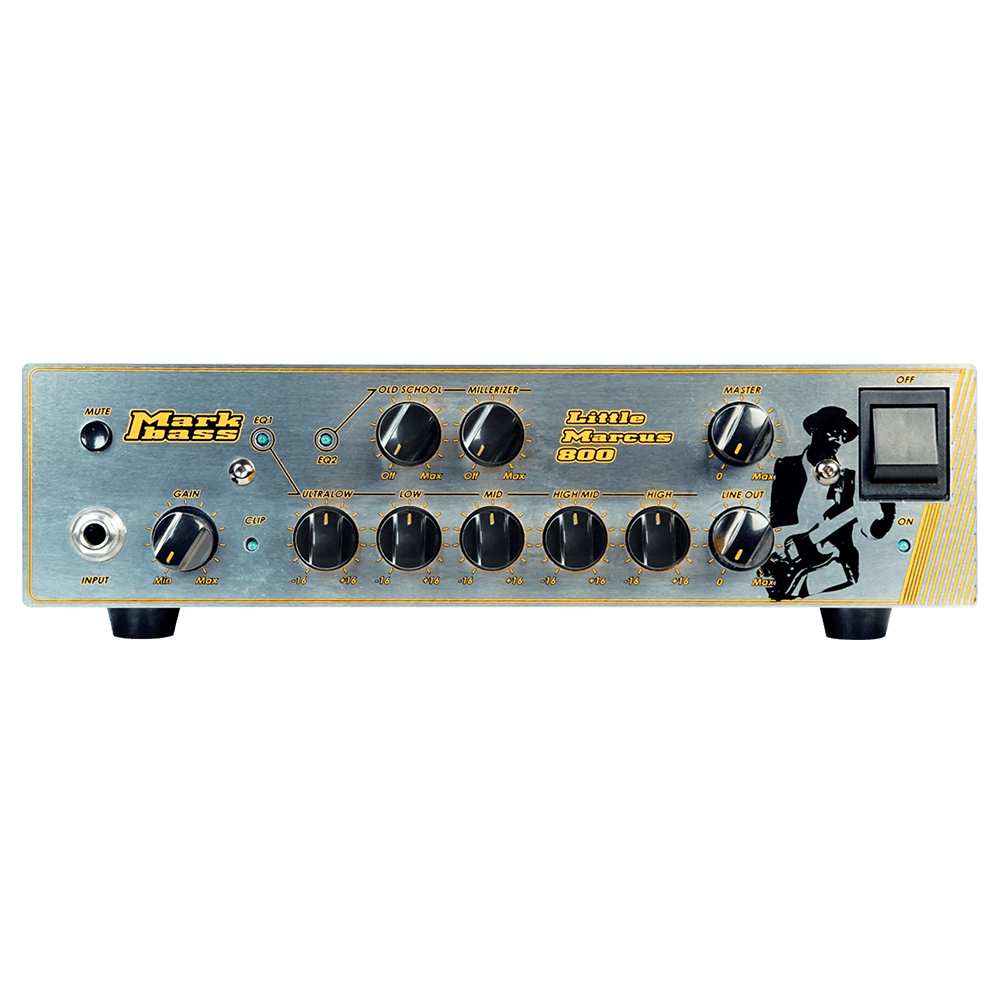

Mark Bass Little Marcus 800 MBH110068Z

• Power 800w
• Series Signature
• Size S
• Preamp Solid state

TECHNICAL FEATURES

INPUTS

• INPUT: impedance 500 Kohm, max. voltage 9 Vpp
• EFFECT RETURN: impedance 33 Kohm, max. voltage 10 Vpp

CONTROLS

• GAIN: -46 dB to +23 dB range
• MASTER VOLUME
• LINE OUT LEVEL
• MUTE switch
• GROUND LIFT (switch on rear panel)
• PRE/POST EQ (switch on rear panel)
• FSW input for (optional) footswitch to turn on/off EQ1 and EQ2

EQUALIZATION - EQ1

• ULTRALOW: Level ±16 dB (Freq. 65Hz)
• LOW: Level ±16 dB (Freq. 180Hz)
• MID: Level ±16 dB (Freq. 500 Hz)
• HIGH MID: Level ±16 dB (Freq. 1.4 KHz)
• HIGH: Level ±16 dB (Freq. 3.8 KHz)

EQUALIZATION - EQ2

• OLD SCHOOL: Variable LOW PASS From 20KHz to 200Hz
• MILLERIZER: 5-12 KHz BAND PASS Filter (Level 0 /+10 dB)

OUTPUTS

• LINE OUT: balanced XLR, max. voltage 20 Vpp
• EFFECT SEND: unbalanced, max. voltage 20 Vpp (pre-EQ)
• TUNER OUT: unbalanced, max. voltage 2 Vpp
• SPEAKER OUT: speakon combo

OTHER

• WEIGHT: 6.61 lbs / 3 Kg
• WIDTH: 10.87 in. / 27.6 cm
• DEPTH: 9.84 in. / 25 cm
• HEIGHT: 3.27 in. / 8.3 cm
• OUTPUT POWER: 800W RMS @ 4 ohms / 500W RMS @ 8 ohms
• POWER REQUIREMENT:100/120V; 230V; 240V – 50/60Hz
