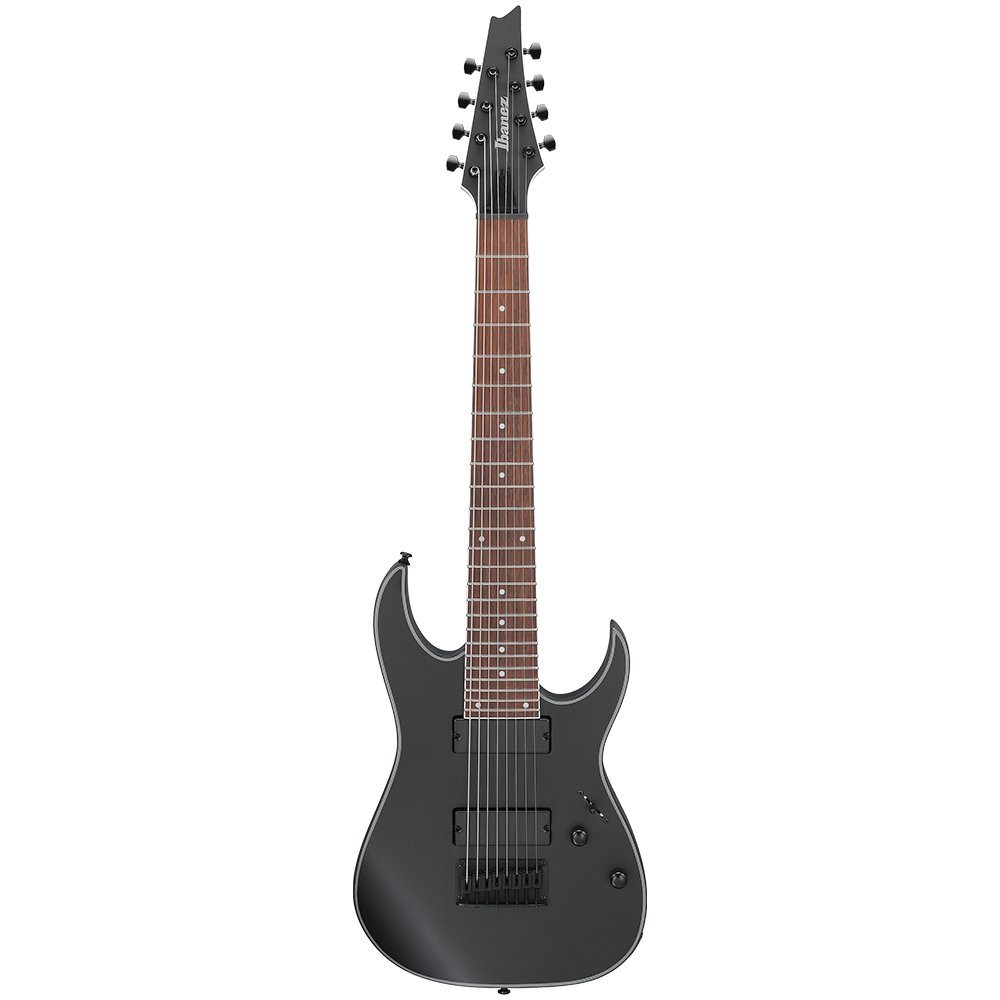

Ibanez RG8EX Black Flat Electric Guitar

SPECS

• Neck type Wizard II-85pc Maple/Walnut neck

• Top/back/body Meranti body

• Fretboard Jatoba fretboardWhite dot inlay

• Fret Jumbo frets

• Number of frets    24

• Bridge F108 bridge

• String space 10.5mm

• Neck pickup IBZ-8 (H) neck pickupPassive/Ceramic

• Bridge pickup IBZ-8 (H) bridge pickupPassive/Ceramic

• Factory tuning 1D#,2A#,3F#,4C#,5G#,6D#,7A#,8F

• Strings D'Addario® EXL120-8

• String gauge .009/.011/.016/.024/.032/.042/.054/.065

• Hardware color Black

NECK DIMENSIONS

• Scale :  686mm/27"

• a : Width 55mm at NUT

• b : Width 80mm at 24F

• c : Thickness 20mm at 1F

• d : Thickness 21.5mm at 12F

• Radius : 400mmR

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES

• Recommended Case MR500C

• Recommended Bag IGB540-BK

Features

Jatoba Fretboard
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.

Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.

F108 bridge
The F108 bridge enriches sustain. String height adjustment can be done easily and independently.

IBZ-8 pickups
IBZ-8 pickups are designed for extended range guitars and deliver a tight low end that handle high-gain settings without losing tonal clarity.

Wizard II 5pc Maple/Walnut neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.
