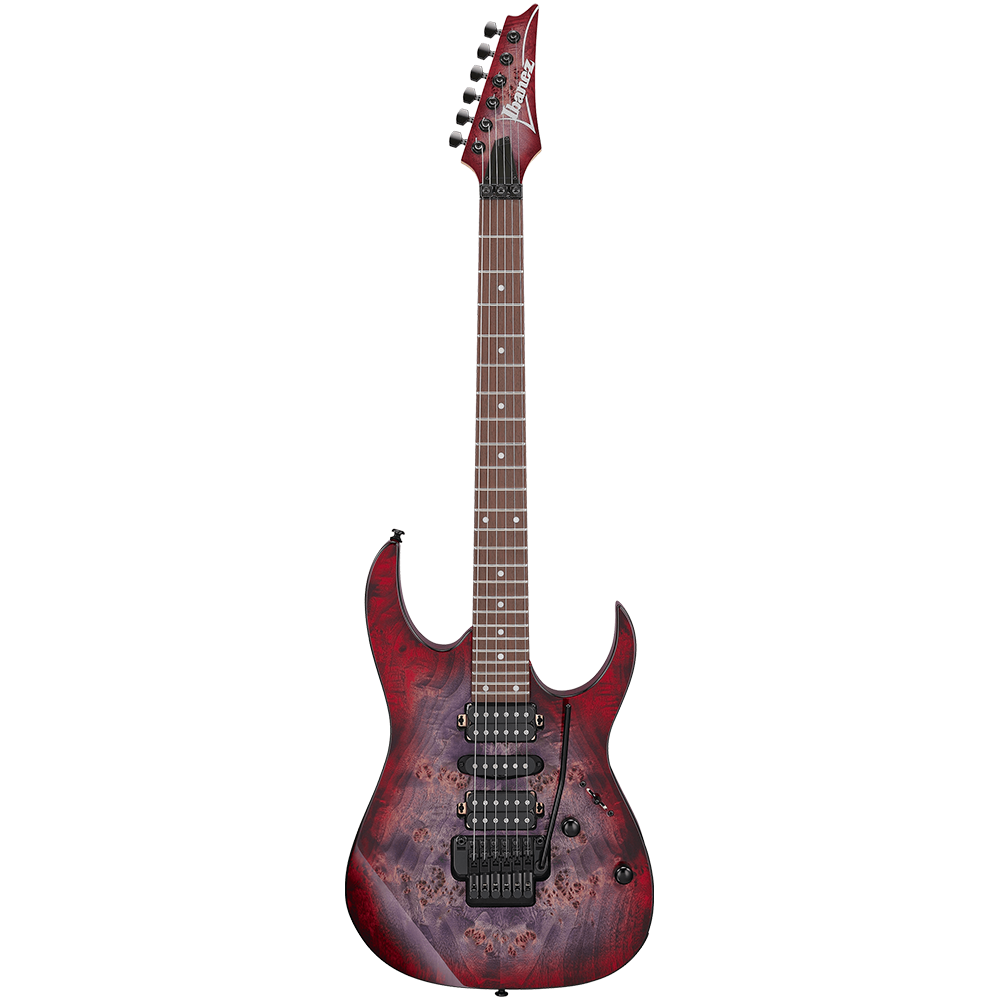

Ibanez RG470PB-REB Electric Guitar RG Standard Series

Color - Red Eclipse Burst

SPECS

• neck type Wizard III/Maple neck

• top/back/body Poplar Burl topMeranti body

• fretboard Jatoba fretboardWhite dot inlay

• fret Jumbo frets

• number of frets 24

• bridge Edge-Zero II bridge

• string space 10.8mm

• neck pickup Quantum (H) neck pickupPassive/Ceramic

• middle pickup Quantum (S) middle pickupPassive/Alnico

• bridge pickup Quantum (H) bridge pickupPassive/Ceramic

• factory tuning 1E,2B,3G,4D,5A,6E

• strings D'Addario® EXL120

• string gauge .009/.011/.016/.024/.032/.042

• nut Locking nut

• hardware color Black

NECK DIMENSIONS

• Scale :    648mm/25.5"

• a : Width    43mm at NUT

• b : Width    58mm at 24F

• c : Thickness    19mm at 1F

• d : Thickness    21mm at 12F

• Radius :    400mmR

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES

• Recommended Case M300C

Features

Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.

Jatoba Fretboard
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.

Edge-Zero II tremolo bridge
The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.

Quantum pickups
The Quantum pickups provide accelerated bass response for exceptionally fast tracking of high-speed staccato riffing with crushing mid range and precise high-end articulation.

Wizard III Maple neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.
