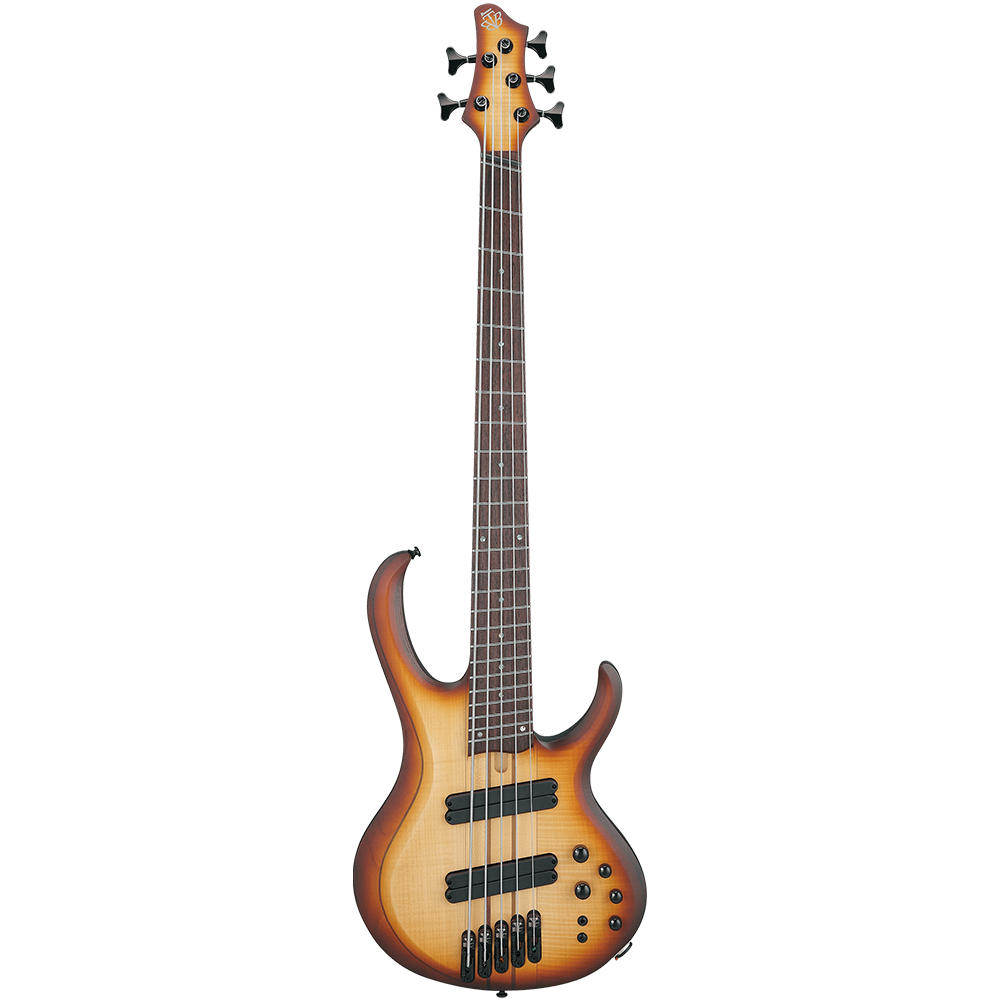

Ibanez BTB705LM-NNF Bass Guitar BTB Workshop Series 5 string

Color - Natural Browned Burst Flat

SPECS

• neck type BTB5 for Multi Scale5pc Maple/Walnut w/Graphite reinforcement rods/Neck-through

• top/back/body Flamed Maple topAsh/Okoume wing body

• fretboard Rosewood fretboard/Abalone dot inlay

• fret Medium Stainless Steel frets

• number of frets 24 (+ zero fret)

• bridge MR5S bridge

• string space 19mm

• neck pickup T1 neck pickup(Passive)

• bridge pickup T1 bridge pickup(Passive)

• equalizer Ibanez Custom Electronics 3-band EQ w/EQ bypass switch (passive tone control on treble pot), 3-way Mid frequency switch

• factory tuning 1G,2D,3A,4E,5B

• strings D'Addario® NYXL45130SL

• string gauge .045/.065/.080/.100/.130

• hardware color Black

NECK DIMENSIONS

• Scale :  889mm/35" - 864mm/34"

• a : Width  47mm at NUT

• b : Width  75mm at 24F

• c : Thickness  20mm at 1F

• d : Thickness  22mm at 12F

• Radius :  400mmR

CONTROLS

FREQUENCY RESPONSE

OTHER FEATURES

• Recommennded Case MRB350C

• Recommended Bag IBB540-BK

Features

5pc Maple/Walnut neck with Graphite reinforcement rods
The 5pc Maple/Walnut neck provides tonal clarity and superior attack.The Graphite reinforcement rods provides massive sustain and excellent stability.

Neck-through construction
The neck-through construction contributes to massive sustain and smooth access to high fretboard positions.

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Medium Stainless Steel frets
The Stainless Steel frets are durable and long-lasting.

Flamed Maple top / Ash / Okoume wing body
The Flamed Maple top displays a beautiful wood grain and the Ash/Okoume wing body delivers a pleasant brightness and rich sustain.

T1 pickups
The T1 pickup is a humbucker featuring two separate, individually mounted coils that provides tight bass response, punchy mid-range, and clear high-end. It offers flexible voicing suitable for various genres, and the height of each coil can be set individually for highly nuanced adjustments to the tone. On top of its great sound, the physical design features rounded edges for enhanced ergonomic comfort when using the pickup as a thumb rest. Moreover, the individually mounted coils allow them to be positioned slightly offset from one another. This makes it so the surface of the pickup where the player rests their thumb is directly parallel with the strings, which is not typical with most multi scale basses. This design greatly enhances the comfort and playability of the instrument.

Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & Mid frequency switch
Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.
Precision tonal control, including a switch to choose passive-only operation. When the EQ bypasses activated, the treble tone control knob becomes the global tone control for the passive circuit.

MR5S bridge
The MR5S bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist's specific string spacing needs.

35-34 inch multi scale
35-34 inch multi scale construction allows the higher strings to be played more easily, while still having adequate tension for lower strings.
