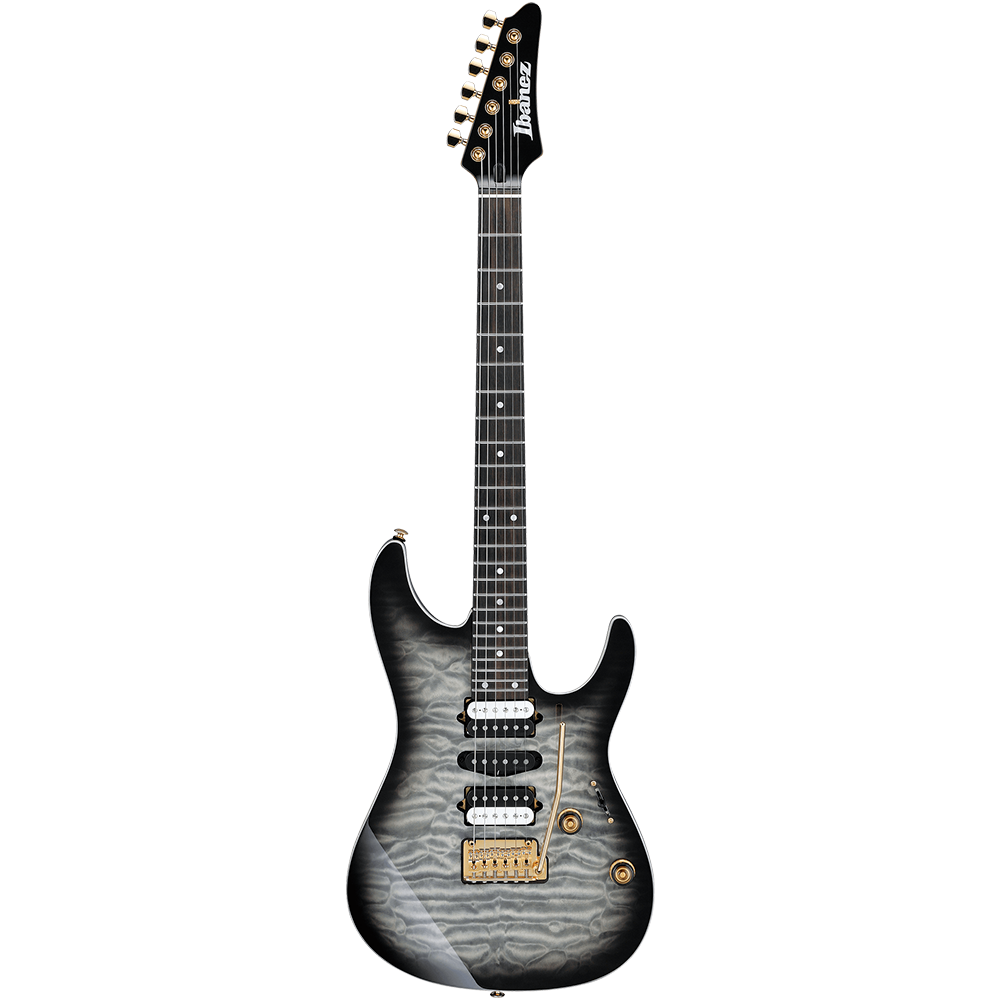

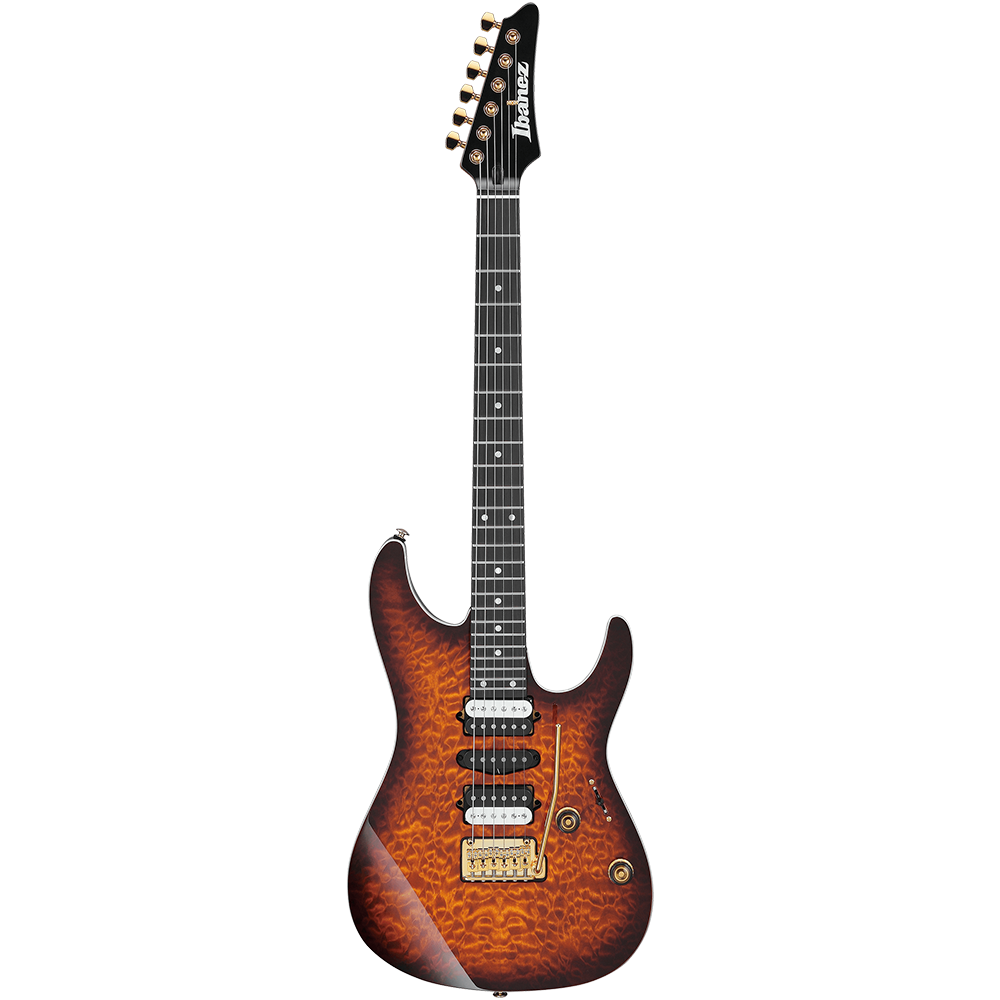

Ibanez AZ Series Premium AZ47P1QM Electric Guitar W/Bag

SPECS

• Neck type AZ Oval C/Roasted Maple neck

• Top/back/body Quilted Maple top/American Basswood body

• Fretboard Ebony fretboard/Mother of Pearl dot inlay

• Fret Jumbo Stainless Steel frets

• Number of frets 24

• Bridge Gotoh® T1502 bridge

• String space 10.5mm

• Neck pickup DiMarzio® Air Norton™ (H) neck pickup(Passive/Alnico)

• Middle pickup DiMarzio® True Velvet™ (S) middle pickup(Passive/Alnico)

• Bridge pickup DiMarzio® The Tone Zone® (H) bridge pickup(Passive/Alnico)

• Factory tuning 1E,2B,3G,4D,5A,6E

• Strings D'Addario® EXL110

• String gauge .010/.013/.017/.026/.036/.046

• Nut Graph Tech® nut

• Hardware color Chrome

NECK DIMENSIONS

• Scale : 648mm/25.5"

• a : Width 42mm at NUT

• b : Width 57mm at 24F

• c : Thickness 20.5mm at 1F

• d : Thickness 22.5mm at 12F

• Radius : 305mmR

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES

• Recommended Case MR500C

• Gig bag included

• Gotoh® MG-T locking machine heads

• Luminescent side dot inlay

Features


DiMarzio Air Norton / True Velvet / The Tone Zone pickups
The DiMarzio Air Norton, True Velvet and Tone Zone pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.


Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.


Luminescent side dot inlays
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.


Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.


Oval C Roasted Maple neck
Heat-treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.


Gotoh® T1502 tremolo bridge
The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.


Ergonomic rear body contour
A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.


Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
