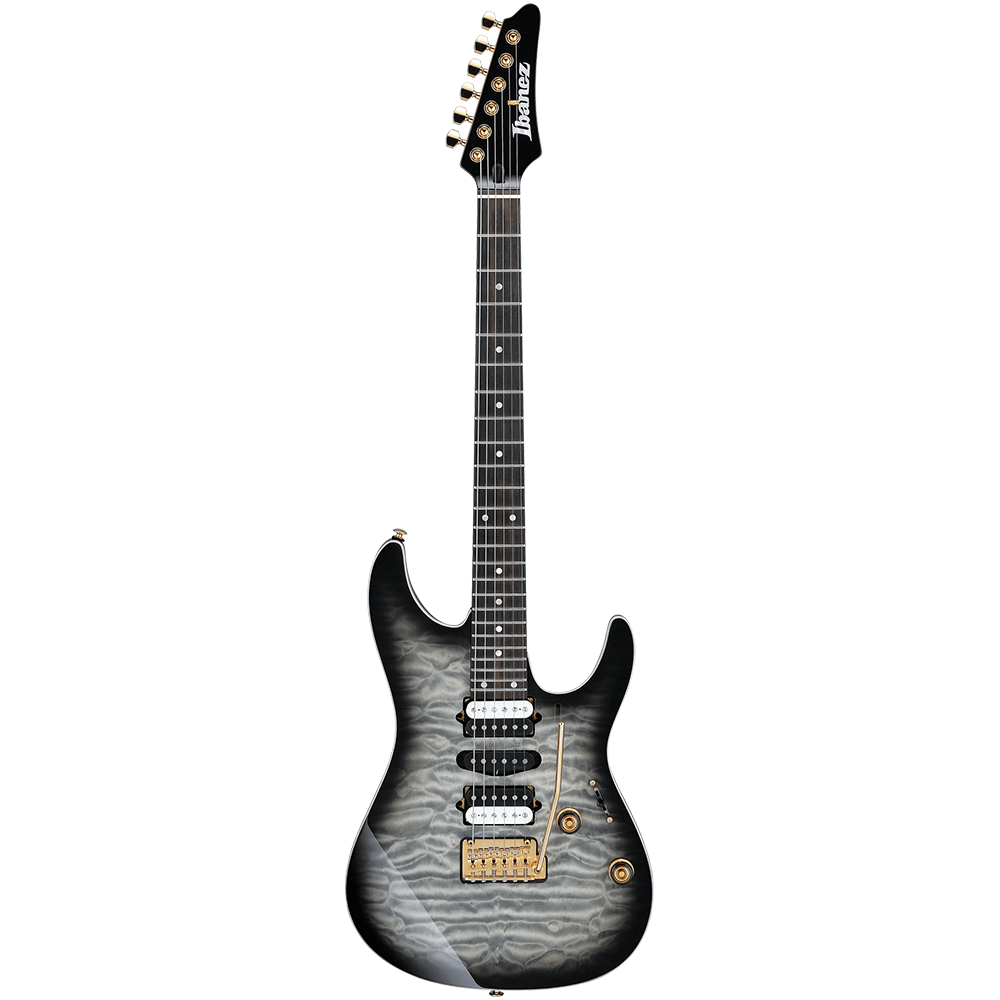

Ibanez AZ Series AZ47P1QM BIB Electric Guitar

COLOR VARIATION：Black Ice Burst

Taking adaptability to new extremes, the AZ series has established itself and carved out a place that spans everything from the warmest blues licks, to the most intense, shred-heavy metal riffs. Carrying this ethos forward, the AZ line embodies time-tested Ibanez innovation and player-focused features like a smooth, oval neck grip, a well-balanced asymmetrical body shape, and the neck heel allowing for unrivaled playability.


SPECS

• neck type AZ Oval C Roasted Maple neck
• top/back/body Quilted Maple top American Basswood body
• fretboard Ebony fretboard Mother of Pearl dot inlay
• fret Jumbo Stainless Steel frets
• number of frets 24
• bridge Gotoh® T1502 bridge
• string space 10.5mm
• neck pickup DiMarzio® Air Norton™ (H) neck pickupPassive/Alnico
• middle pickup DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
• bridge pickup DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
• factory tuning 1E,2B,3G,4D,5A,6E
• strings D'Addario® EXL110
• string gauge .010/.013/.017/.026/.036/.046
• nut Graph Tech® nut
• hardware color Gold

NECK DIMENSIONS

• Scale : 648mm/25.5"
• a : Width 42mm at NUT
• b : Width 57mm at 24F
• c : Thickness 20.5mm at 1F
• d : Thickness 22.5mm at 12F
• Radius : 305mmR

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES

• Recommended Case MR500C
• Gig bag included
• Gotoh® MG-T locking machine heads
• Luminescent side dot inlay

Features

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups

The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

Ebony Fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Gotoh MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Oval C Roasted Maple neck

Heat-treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.

Gotoh T1502 tremolo bridge

The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.
