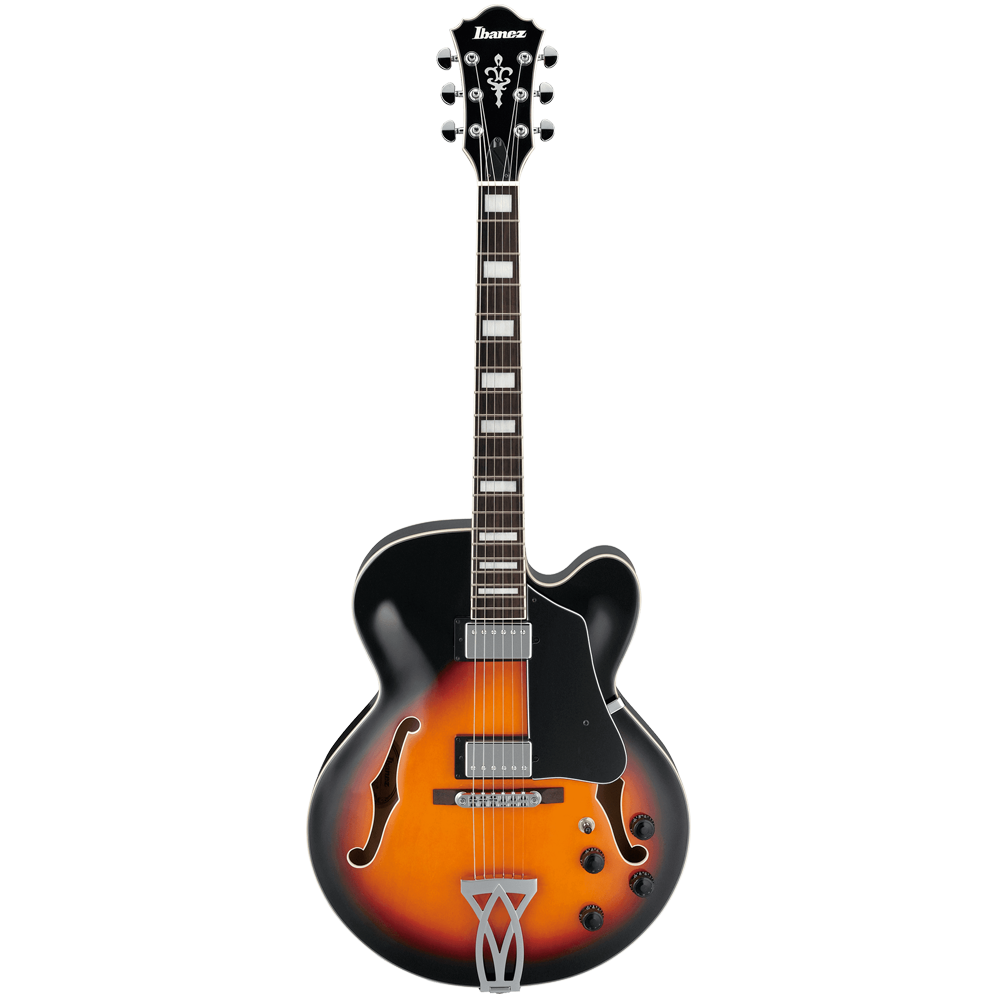

Ibanez AF Series AF75 BS Electric Guitar

COLOR VARIATION：Brown Sunburst

The AF is the most traditional design within the Artcore series. The full-hollow body construction means there are no sound blocks in the body. This construction method produces a rich, complex tone, expressed with a pure voice and full body, the tonal characteristics most highly desired among the discerning Jazz player.



SPECS

• Neck type AF ArtcoreNyatohSet-in neck

• Top/back/side Linden top Linden backLinden sides

• Fretboard Bound Walnut fretboardAcrylic block inlay

• Fret Medium frets

• Number of frets 20

• Bridge Gibraltar Performer bridge

• String space 10.5mm

• Tailpiece VT60 tailpiece

• Neck pickup Classic Elite (H) neck pickupPassive/Ceramic

• Bridge pickup Classic Elite (H) bridge pickupPassive/Ceramic

• Factory tuning 1E,2B,3G,4D,5A,6E

• String gauge .010/.013/.017/.030/.042/.052

• Hardware color Chrome

NECK DIMENSIONS

• Scale : 628mm

• a : Width 43mm at NUT

• b : Width 56.3mm at 20F

• c : Thickness 21mm at 1F

• d : Thickness 24mm at 9F

• Radius : 305mmR

BODY DIMENSIONS

• a : Length 19 1/2"

• b : Width 15 3/4"
  c : Max Depth 3 5/8"

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES

• Recommended Case MF100C
• Recommended Bag IHB541-BK

Features

VT60 tailpiece
The artistically-designed VT60 tailpiece provides both great tuning stability and rich sustain.

Nyatoh neck
The Nyatoh neck provides a rich mid-low end.

Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.

Walnut fretboard
A Walnut fretboard features a well-balanced tonal character from low to high end.
