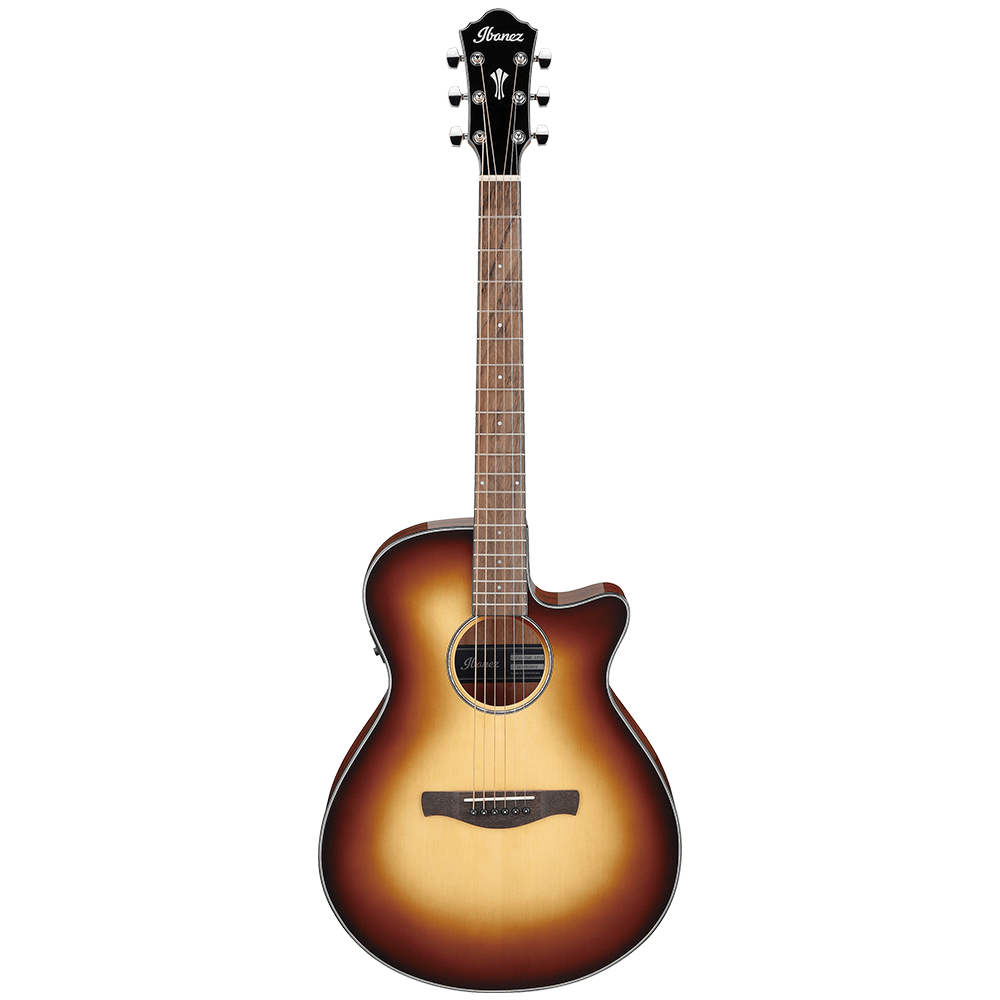

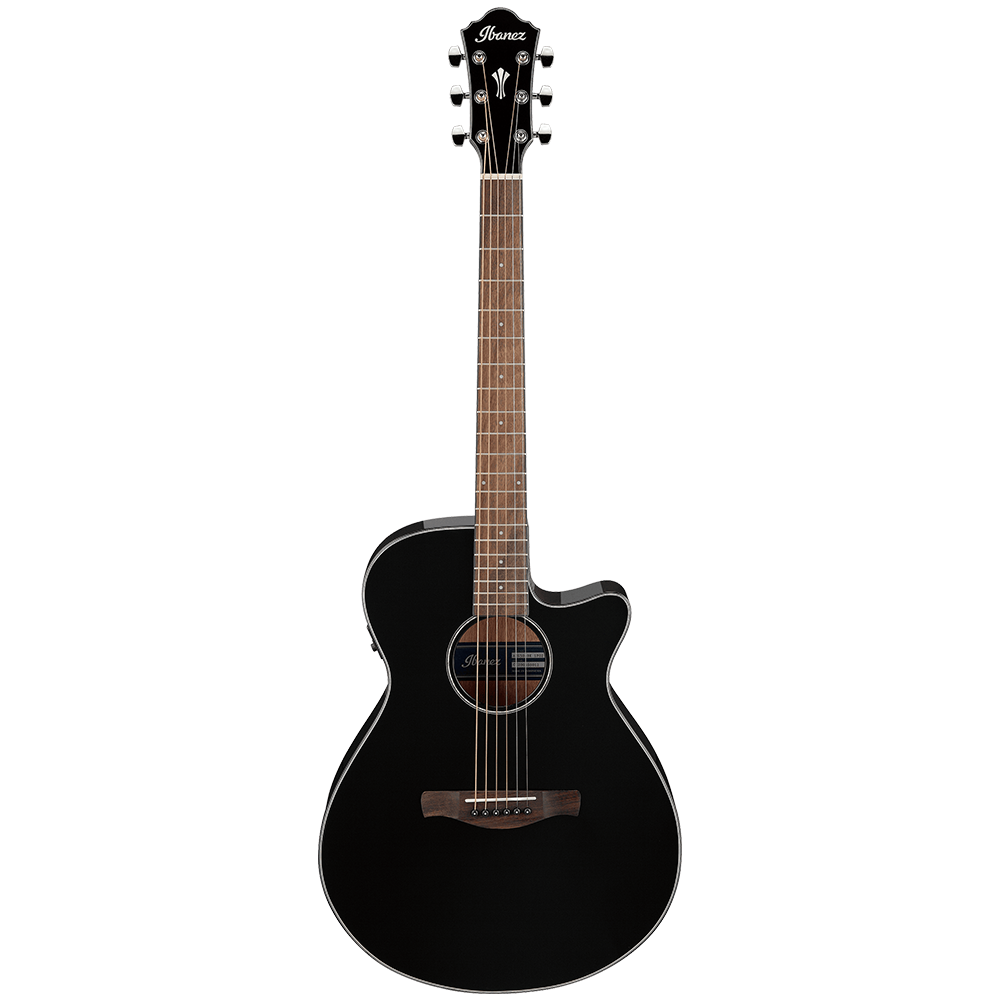

Ibanez AEG50 Semi Acoustic Guitar

SPECS

• body shape AEG body
• top Spruce top
• back & sides Okoume back & Okoume sides
• neck AEGNyatoh neck
• fretboard Laurel fretboard
• bridge Laurel bridge
• inlay White dot inlay
• soundhole rosette Acrylic
• tuning machine Chrome Die-cast tuners
• number of frets 20
• bridge pins Ibanez Advantage™
• strings Ibanez IACSP6C
• string gauge .012/.016/.024/.032/.042/.053
• string space 11mm
• factory tuning 1E,2B,3G,4D,5A,6E
• pickup Ibanez T-bar II Undersaddle
• preamp Ibanez AEQ-TTS preamp w/Onboard tuner
• output jack 1/4" output

NECK DIMENSIONS

• Scale : 634mm/25"
• a : Width 43mm at NUT
• b : Width 54.33mm at 14F
• c : Thickness 20mm at 1F
• d : Thickness 21mm at 7F
• Radius : 400mmR

BODY DIMENSIONS

• a : Length 19 3/8"
• b : Width 15 "
• c : Max Depth 3 3/4"

PREAMP


OTHER FEATURES

• Recommended Case FS40CL
• Recommended Bag ICB540-BK

Features


Ibanez AEQ-TTS preamp w/Onboard Tuner
The small and simple preamp has only two control knobs, volume and shape. This at-a-glance tone control offers natural acoustic sound in the center position. It allows players to adjust the tone easily and enables them to go from low, fat and powerful tones to a bright and crisp sound while adjusting only one knob. A new easy-to-read onboard tuner with LCD(liquid crystal display) is located on the preamp.


Laurel fretboard
The Laurel fretboard provides a rich and warm tone.


Laurel bridge
The Laurel bridge transfers string vibration directly to the body, delivering a natural and warm tone.


Nyatoh neck
The Nyatoh neck provides a rich mid-low end.


Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.


Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
