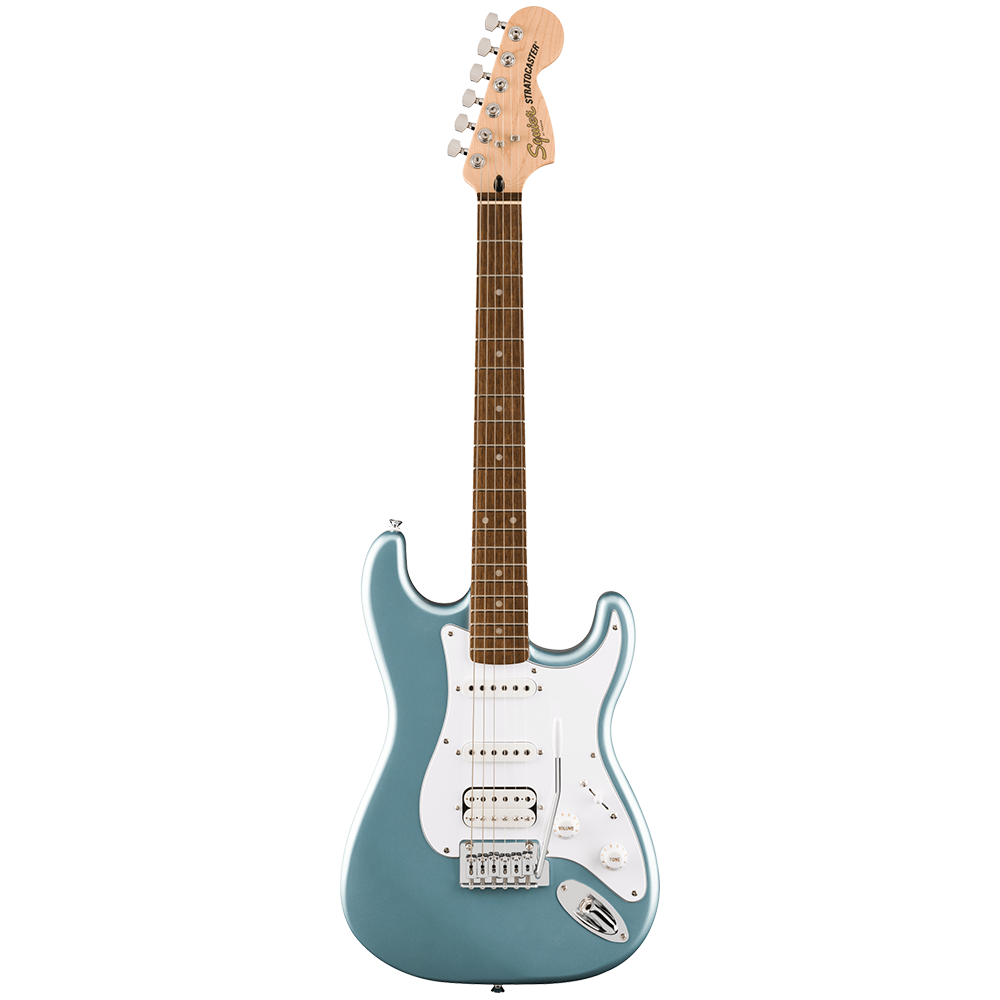

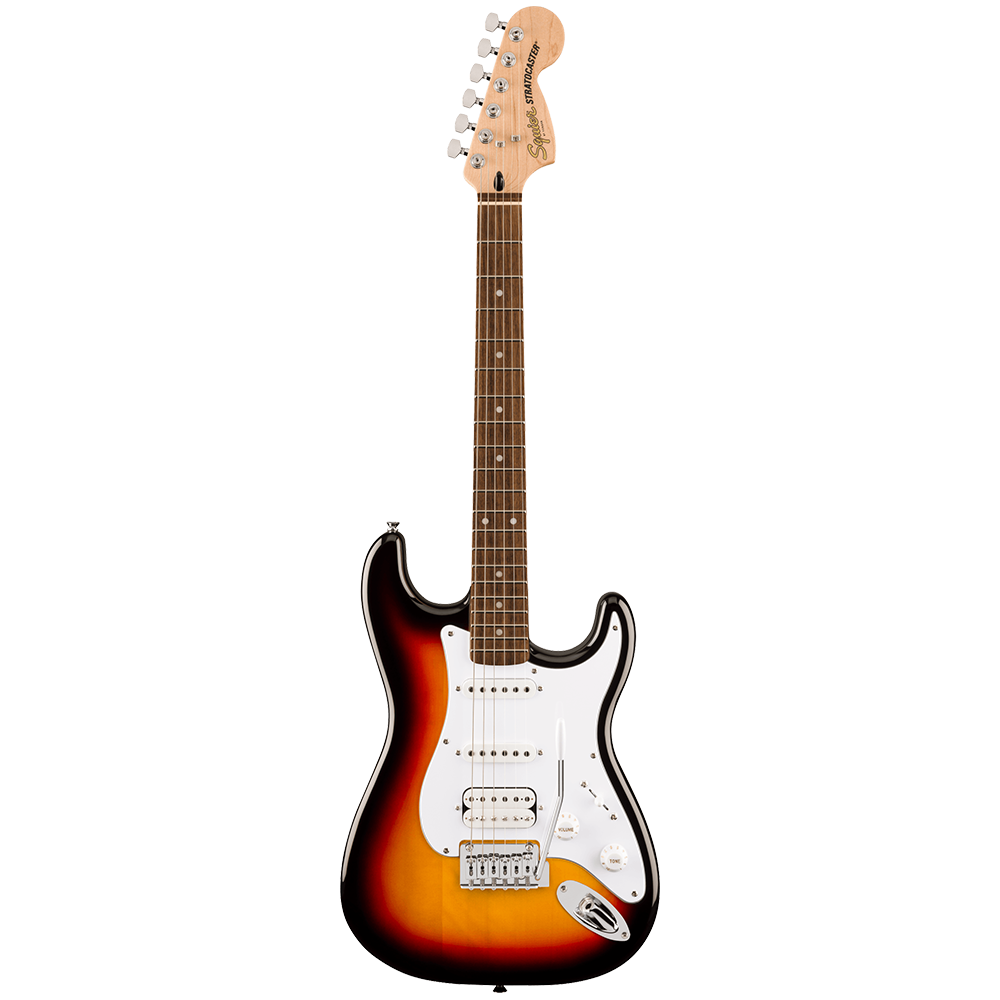

Fender Squier Affinity Series Stratocaster Junior HSS Laurel

Model #: 0378180500 / 0378180583

Features

• Reduced-size body and short 24“ scale length

• HSS pickup configuration

• 2-point tremolo bridge

• Slim and comfortable “C”-shaped neck profile

• Sealed die-cast tuning machines with split shafts

Highlights

REDUCED OVERALL SIZE
With a scaled-down body and short 24“ scale length, this Strat delivers iconic rock & roll style for smaller players and travelers alike.

2-POINT TREMOLO BRIDGE
This Stratocaster features a two-point tremolo bridge for smooth, superior tremolo action.

SQUIER SINGLE-COIL AND HUMBUCKING PICKUPS
Voiced in-house at Fender, the Squier single coil neck and middle pickups produce crisp, articulate tone, complimenting the fat, rich sound of the humbucking bridge pickup.

Specs

Body

• Body Poplar

• Body Finish Gloss Polyurethane

• Body Material Poplar

• Body Shape Stratocaster®

Electronics

• Bridge Pickup Ceramic Humbucker

• Controls Master Volume, Master Tone

• Middle Pickup Ceramic Single-Coil

• Neck Pickup Ceramic Single-Coil

• Pickup Configuration HSS

• Switching 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

Hardware

• Bridge 2-Point Synchronized Tremolo with Block Saddles

• Control Knobs White Plastic

• Hardware Finish Chrome

• Neck Plate 4-Bolt Squier®

• Pickguard 3-Ply White

• Pickup Covers White

• Strap Buttons Standard

• String Trees Dual-Wing

• Strings Nickel Plated Steel (.009-.042 Gauges)

• Switch Tip White

• Tremolo Arm Screw-In

• Tuning Machines Sealed Die-Cast with Split Shafts

Measurements

• Fret Size Medium Jumbo

• Scale Length 24" (610 mm)

Miscellaneous

• Style 2 Single-Coil / 1 Humbucking

Neck

• Fingerboard Material Indian Laurel

• Fingerboard Radius 9.5" (241 mm)

• Neck Construction Bolt-On

• Neck Finish Satin Urethane with Gloss Urethane Headstock Face

• Neck Material Maple

• Neck Shape "C" Shape

• Number of Frets 20

• Nut Material Synthetic Bone

• Nut Width 1.650" (42 mm)

• Position Inlays Pearloid Dot

• Side Dots White

• String Nut Synthetic Bone

• Truss Rod Head Adjust

• Truss Rod Nut 4 mm Hex
