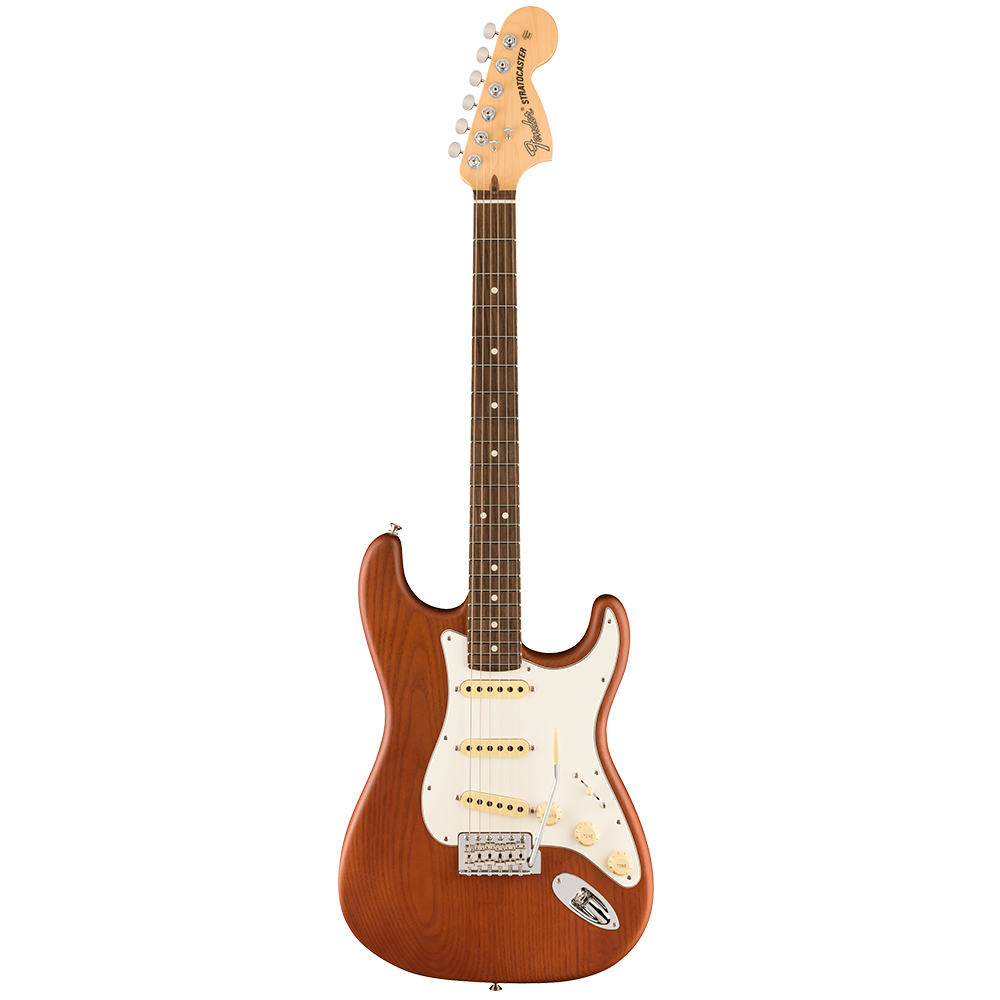

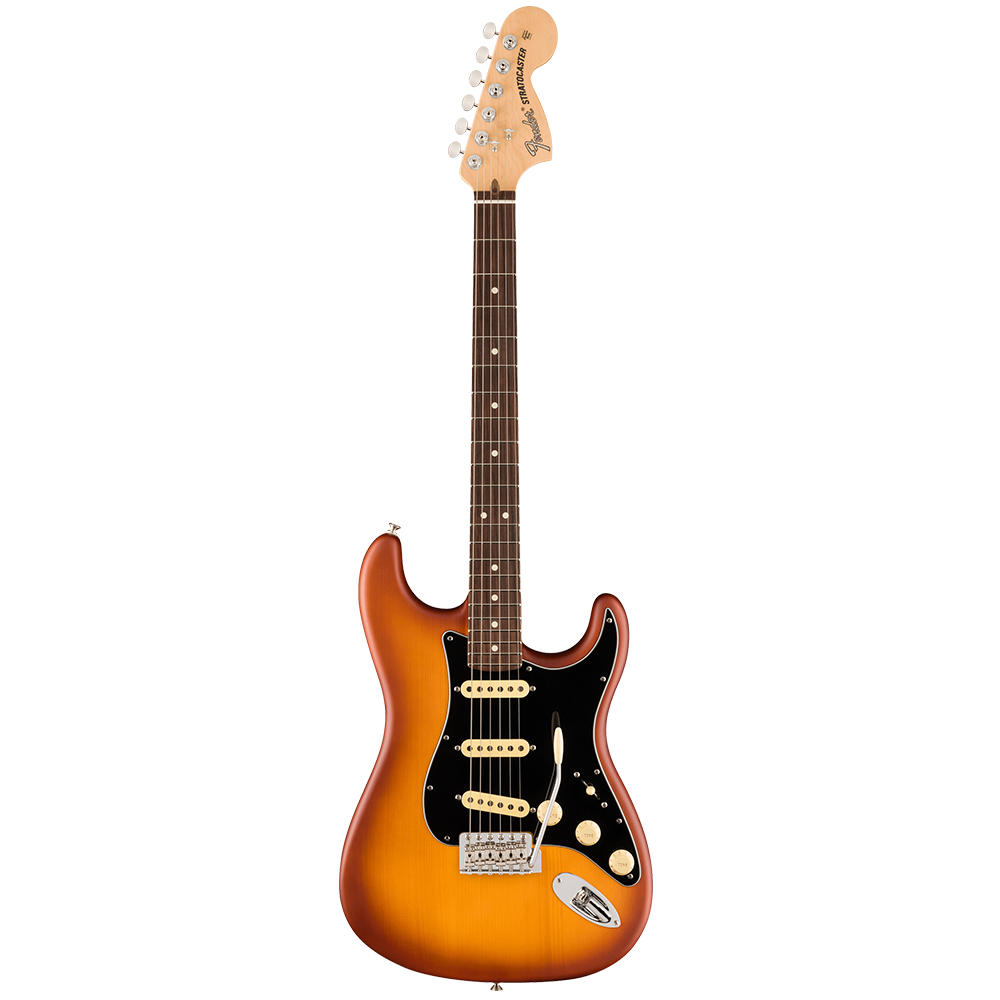

Fender Limited Edition American Performer Timber Stratocaster Rosewood

Model #: 0171030742 / 0171030729

Features

• Sassafras, Sugar Pine, and Spruce body options

• Three Yosemite single-coil Stratocaster pickups; RW/RP middle pickup

• Push-pull pot activates neck pickup; Greasebucket tone circuitry

• "Modern C"-shaped neck with 9.5"-radius fingerboard; 22 jumbo frets

• ClassicGear™ tuning machines; silver '70s logo

Highlights

New Yosemite Pickups
Handcrafted in Corona, California, Yosemite single-coil pickups are specifically voiced for each instrument and position to create sonically versatile and musically useful sounds.

New ClassicGear Tuning Machines
Combining vintage style with a modern 18:1 gear ratio, the ClassicGear tuning machines have smooth action and make it easier to fine-tune your instrument.

Jumbo Frets
Jumbo frets make it easier to achieve wide, expressive bends that add your personal touch to your music.

Push-Pull Potentiometer
The push-pull pot activates the neck pickup, letting you access neck/bridge and “all on” combinations with a simple finger flick.

Satin-Finished Neck
Featuring a “Modern C”-shaped profile that works well with almost any playing style, the neck also hosts a satin finish on the back, giving it a smooth, fast playing feel.

Greasebucket Tone System
This uniquely Fender tone system lets you cut treble without losing gain or “muddying” your sound, preserving your carefully shaped tone.

Specs

Accessories

• Recommended Case Classic Series Stratocaster®/Telecaster® Wood Hardshell Case, P/N 0996106306 (Not Included)
• Saddle Height Wrench .050" Hex (Allen) Wrench

• Truss Rod Wrench 1/8" Hex (Allen)

Body

• Body Sassafras

• Body Finish Satin Urethane

• Body Material Sassafras

• Body Shape Stratocaster®

• Body Style Solid Body

Electronics

• Auxiliary Switching Push/Pull Switch On Tone 2 Adds Neck Pickup

• Bridge Pickup Yosemite® Single-Coil Stratocaster®

• Controls Master Volume, Tone 1. (Neck & Middle Pickup), Tone 2. Greasebucket™ Tone Circuit (Bridge Pickup)

• Middle Pickup Yosemite® Single-Coil Stratocaster®

• Neck Pickup Yosemite® Single-Coil Stratocaster®

• Pickup Configuration SSS

• Special Electronics Push/Pull Switch up on Tone 2 adds Neck Pickup in Parallel For Positions 1 and 2

• Switching 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

Hardware

• Bridge 6-Saddle Vintage-Style Synchronized Tremolo

• Bridge Mounting 6-Screw Vintage-Style

• Control Knobs Aged White Plastic

• Hardware Finish Nickel/Chrome

• Neck Plate 4-Bolt

• Pickguard 3-Ply Parchment

• Pickup Covers Aged White

• Strap Buttons Vintage-Style

• String Trees Dual-Wing

• Strings Fender® USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403

• Switch Tip Aged White

• Tuning Machines Fender® ClassicGear™

Measurements

• Fret Size Jumbo

• Scale Length 25.5" (64.77 cm)

Neck

• Fingerboard Material Rosewood

• Fingerboard Radius 9.5" (241 mm)

• Neck Construction 4-Bolt

• Neck Finish Satin Urethane

• Neck Material Maple

• Neck Shape Modern "C"

• Number of Frets 22

• Nut Material Synthetic Bone

• Nut Width 1.685" (42.8 mm)

• Position Inlays White Dot

• Side Dots White

• String Nut Synthetic Bone

• Truss Rod Standard

• Truss Rod Nut 1/8" American Series
