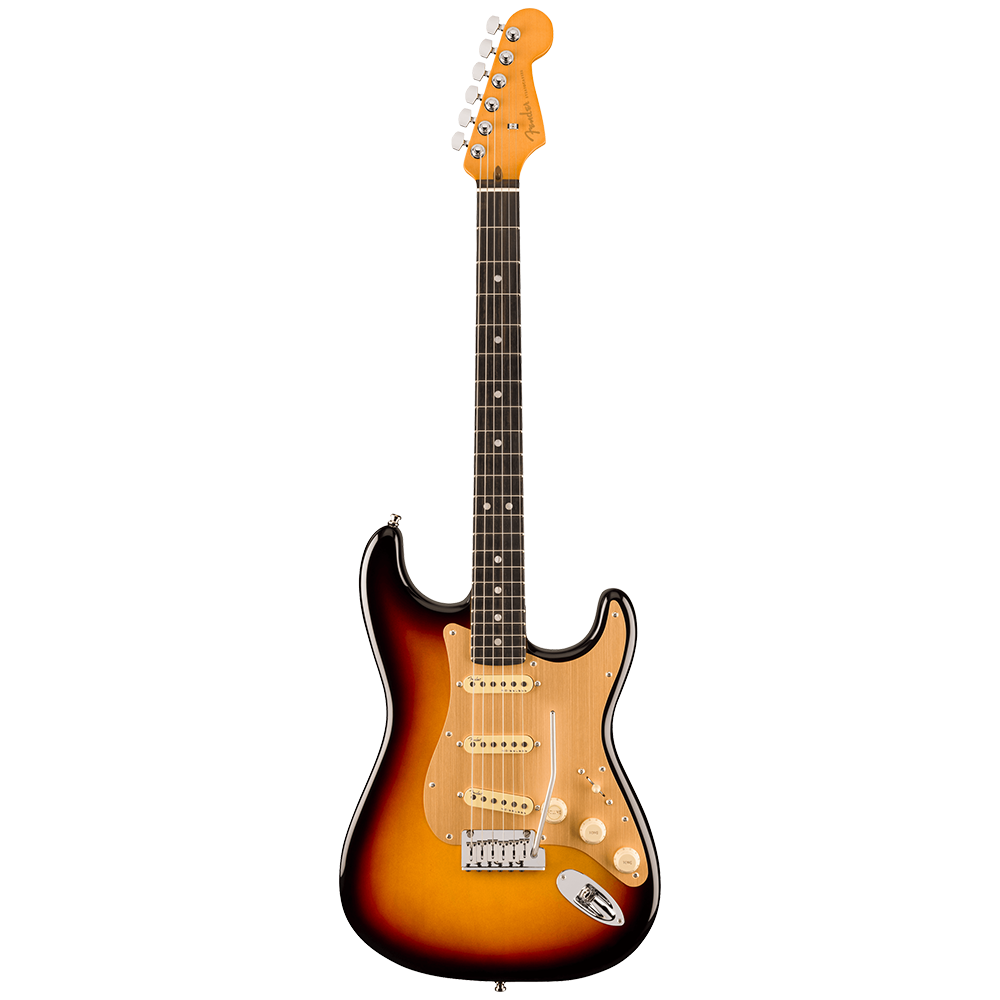

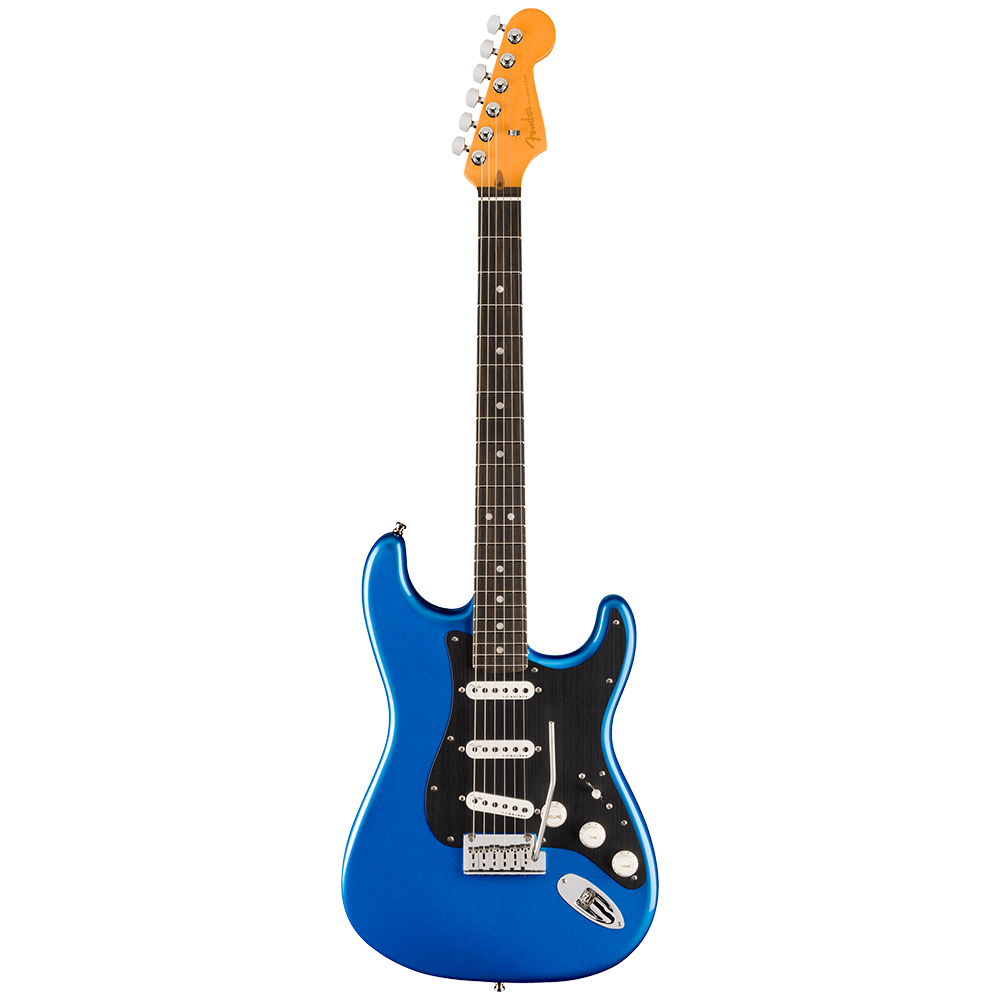

Fender American Ultra II Stratocaster Ebony

Model #: 0119141712 / 0119141776

Features

• Select Alder Body with Ultra Contours and Sculpted Neck Heel

• Quartersawn Maple Modern “D” Profile Neck

• 10"-14" Compound Radius Ebony or Quartersawn Maple Fingerboard with Ultra
• Rolled Edges and Luminlay Side Dots

• Ultra II Noiseless™ Vintage Strat® Pickups, Advanced Electronics and S-1™ Switching

• 2-Point American Ultra Synchronized Tremolo with Polished Stainless Steel Block
• Saddles, Cold Rolled Steel Block and Pop-In Arm

• Short Post Locking Tuners

Highlights

SELECT ALDER BODY WITH ULTRA CONTOURS AND SCULPTED NECK HEEL
A resonant alder body provides classic Fender tone, while the tapered neck heel allows unparalleled access to the upper registers of the fingerboard and “Ultra” sculpted rear body contours are as beautiful as they are functional.

QUARTERSAWN MAPLE MODERN “D” PROFILE NECK
Slim with wide shoulders, the “Modern D” neck profile works for any style of playing, while extra-strong quartersawn maple ensures unparalleled stability.

COMPOUND RADIUS EBONY OR QUARTERSAWN MAPLE FINGERBOARD, ULTRA ROLLED EDGES, LUMINLAY SIDE DOTS
Built for speed, comfort and facility, the 10”-14” compound-radius fingerboard is rounded near the nut, becoming increasingly flatter as it nears the upper register. Luminlay® glow-in the-dark side dots provide exceptional visibility even on the darkest stages while “Ultra” rolled fingerboard edges and a silky, smooth “Ultra” satin finish make the neck effortless to play.

ULTRA II NOISELESS™ VINTAGE STRAT® PICKUPS, ADVANCED ELECTRONICS AND S-1™ SWITCHING
The Ultra II Noiseless™ Vintage pickups are responsive and expressive, delivering definitive Strat® sparkle for exceptional Fender tone without hum. Ultra II Noiseless™ pickups feature an evolved architecture of specialized stacked coils with the top coil wound around Alnico V rod magnets to produce true single-coil Fender tone, and the isolated bottom coil calibrated to preserve the tone and simply reject hum. Our patented S-1™ switch adds the neck pickup in to any switch position, while the treble bleed circuit maintains your highs at any volume.

AMERICAN ULTRA SYNCHRONIZED TREMOLO, STAINLESS STEEL SADDLES, COLD ROLLED STEEL BLOCK, POP-IN ARM
This precision manufactured synchronized tremolo features a deluxe pop-in tremolo arm, polished stainless steel block saddles and a chamfered cold rolled steel block for endless sustain, precise attack and rock-solid tuning stability.

SHORT POST LOCKING TUNERS
A high-performance feature, short post locking tuning machines provide a sharper and more consistent break angle over the nut for increased sustain and enhanced tuning stability while making string changes fast and easy.

Specs

Accessories

• Saddle Height Wrench .050" Hex (Allen) Wrench

• Truss Rod Wrench 1/8" Hex (Allen)

Body

• Body Select Alder

• Body Finish Gloss Urethane

• Body Material Select Alder

• Body Shape Stratocaster®

• Body Style Solid Body

Electronics

• Bridge Pickup Ultra II Noiseless™ Vintage Strat®

• Controls Master Volume (with S-1™ Switch), Tone 1. (Neck/Middle Pickups), Tone 2. (Bridge Pickup)

• Middle Pickup Ultra II Noiseless™ Vintage Strat®

• Neck Pickup Ultra II Noiseless™ Vintage Strat®

• Pickup Configuration SSS

• Special Electronics S-1™ Switch Adds Neck Pickup Into Positions 1 and 2

• Switching 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

Hardware

• Bridge 2-Point American Ultra Synchronized Tremolo with Polished Stainless Steel
• Block Saddles and Cold Rolled Steel Block

• Bridge Mounting 2-Point Modern

• Control Knobs Parchment Soft-Touch Knobs

• Hardware Finish Nickel/Chrome

• Neck Plate 4-Bolt Asymmetrical

• Pickguard 1-Ply Black Anodized Aluminum

• Pickup Covers Parchment

• Strap Buttons Locking

• String Trees Ultra String Guide

• Strings Fender® USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403

• Switch Tip Parchment

• Tuning Machines Deluxe Cast/Sealed Locking (all short posts)

Measurements

• Fret Size Medium Jumbo

• Scale Length 25.5" (64.77 cm)

Neck

• Fingerboard Material Ebony

• Fingerboard Radius 10" to 14" Compound Radius (254 mm to 355.6 mm)

• Headstock Stratocaster®

• Neck Construction 4-Bolt

• Neck Finish Ultra Satin Urethane

• Neck Material Quartersawn Maple

• Neck Shape Modern "D"

• Number of Frets 22

• Nut Material Graph Tech® TUSQ®

• Nut Width 1.685" (42.8 mm)

• Position Inlays White Pearloid Dot - 7mm

• Side Dots Luminlay®

• String Nut Graph Tech® TUSQ®

• Truss Rod Bi-Flex™
