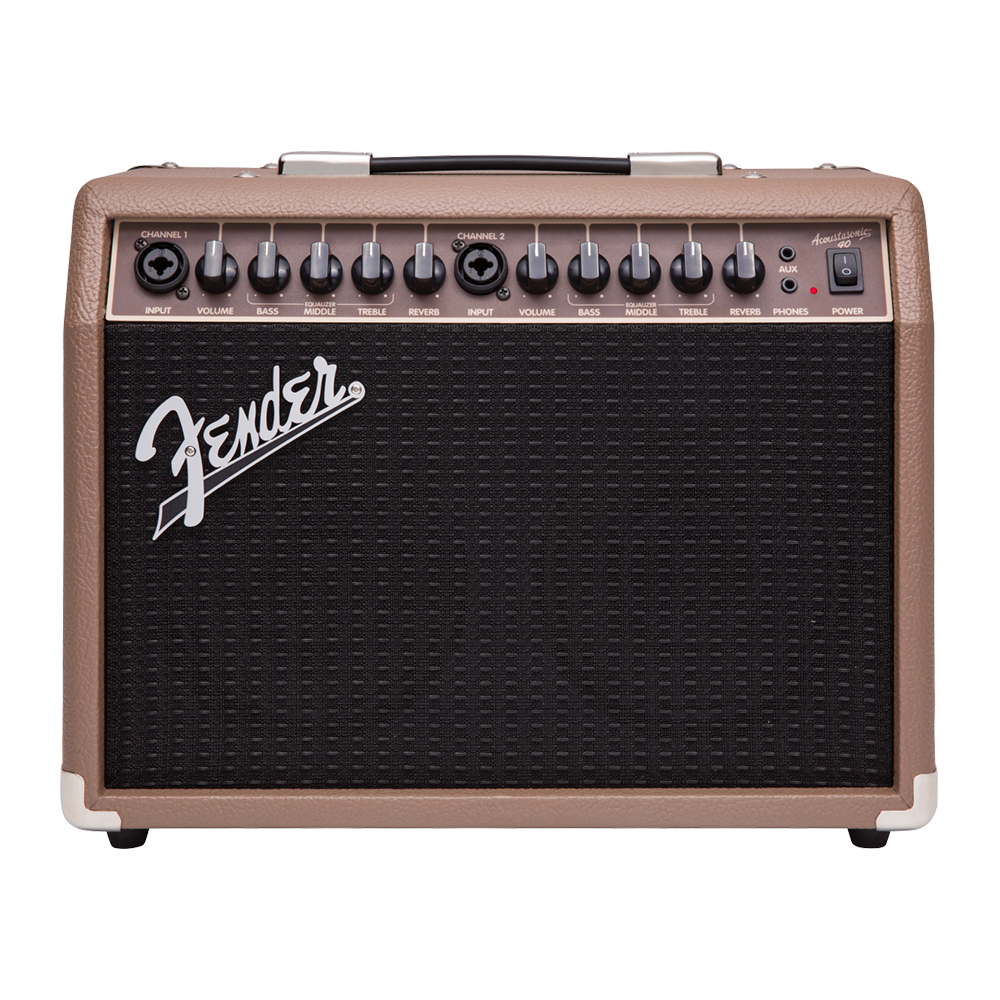

Fender Acoustasonic 40W Brown and Wheat

Model #: 2314204000

Features

• Two - 6" Speaker with "Whizzer" Cone

• Built in Reverb

• XLR and 1/4" inputs

Highlights

6” Speaker with “Whizzer” Cone
For more effective high-frequency response, the Acoustasonic 40 bears the unusual distinction of being the only Fender guitar amp to use a “whizzer” cone—a small supplementary speaker cone attached to the voice coil of the amps 6” speaker.

Built-In Reverb
For extra ambience, the Acoustasonic 40’s instrument channel features built-in reverb.

XLR and ¼” Inputs
The Acoustasonic 40’s convenient dual front-panel inputs include a standard ¼” jack for an instrument and an XLR input for a microphone.

Specs

Accessories

• Footswitch NA

Electronics

• Auxiliary Input 1/8 in (3.5 mm) Stereo

• Channels Two

• Control Panel Channel 1: Volume, Bass, Mid, Treble, Reverb; Channel 2: Volume, Bass, Mid, Treble, Reverb

• Controls Channel 1: Volume, Bass, Mid, Treble, Reverb; Channel 2: Volume, Bass, Mid, Treble, Reverb

• Effects Reverb

• Inputs Two - (XLR / 1/4" combined)

• Voltage Requirements 100-240 VAC, 50-60 Hz

• Wattage 40 Watts

Hardware

• Amplifier Covering Brown Textured Vinyl

• Cabinet Material 5-Ply 5/8" Lightweight Plywood

• Control Knobs Round Brown Plastic with White Indicator Line

• Grille Cloth Black

• Handle Molded Plastic Strap with Nickel-Plated Caps

Measurements

• Power Tubes NA

• Product Depth 7.125" 18.09 cm)

• Product Height 11.625" (29.5 cm)

• Product Width 15" (38 cm)

Speakers

• Speakers Two - 6.5" Special Design Full-Range with Whizzer Cones

• Total Impedance 8 ohms

Tubes

• Power Tubes NA

• Preamp Tubes NA
