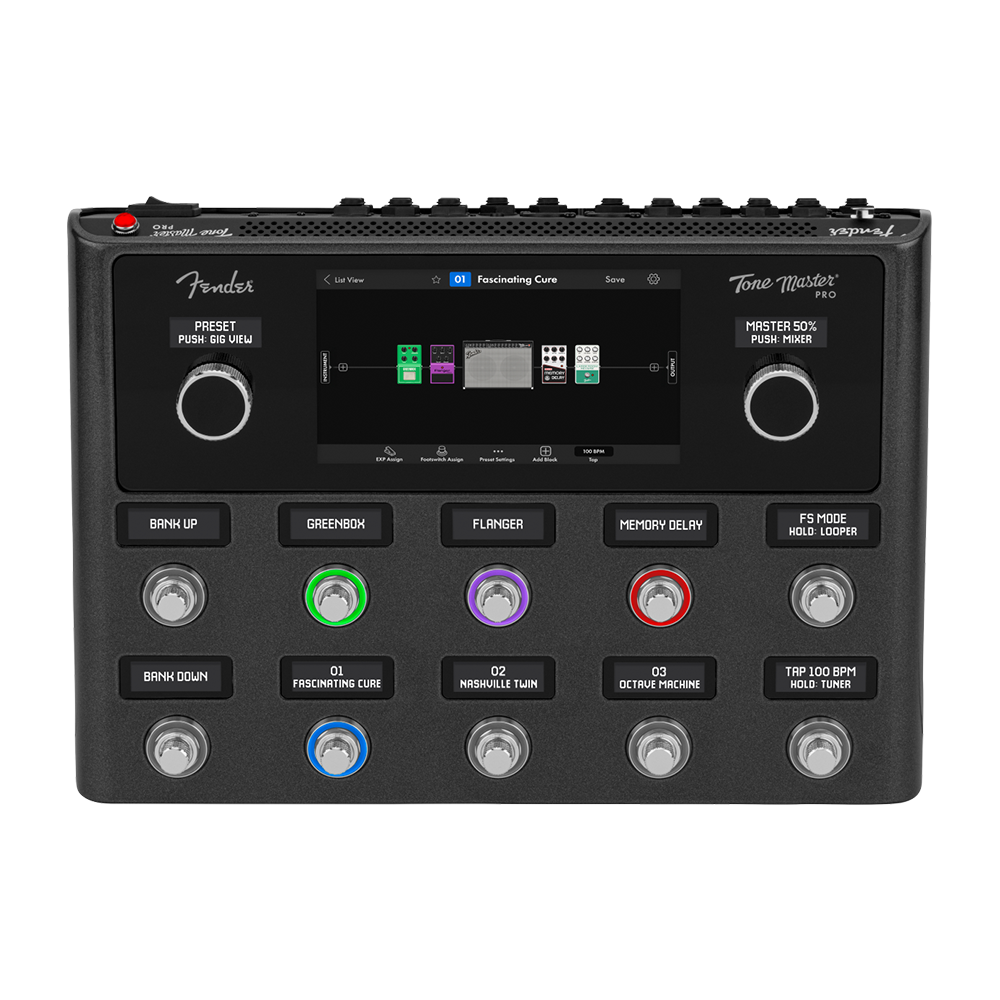

Fender Tone Master PRO Processor

Model #: 2274904000

Features

• Over 100 Tone Master quality Amp & Effect Models

• Over 6000 Fender-captured Impulse Responses with a variety of cabinet and microphone options

• 3rd Party IR support

• 7 inch Color Touch-screen

• Innovative Song & Setlist modes

• 60 second Stereo Looper

• 4 Effects Loops for integrating your favorite pedals

• Instrument and XLR mic inputs

• 10 proprietary footswitch/encoders with LCD “scribble strips”

• True preset spillover of delay and reverb tails for seamless preset changes
  Firmware updates over USB

• Compatible with Tone Master Pro Control desktop app for editing, sharing and downloading presets

• Over 500 User Presets with access to thousands more from the Cloud using the Tone Master Pro Control App

• Bluetooth wireless connection for streaming audio from a mobile device
  Stereo 1/4" Headphone output jack for silent practice

• Compatible with the Mission Engineering SP1-TMP Expression Pedal for realtime control of parameters

• Lightweight, under 9 lbs.

• Patent Pending

Highlights

FULL-COLOR 7" TOUCH SCREEN
Large, bright full-color touch display that’s easy to read for easy navigation and fast editing of every parameter.

SCRIBBLE STRIPS & FOOTSWITCH ENCODERS
Each footswitch includes a dedicated LCD screen and an integrated rotary control to instantly see its function and for making parameter adjustments.

6000 FACTORY IMPULSE RESPONSE CABS
Accurate speaker cabinet IRs captured with a collection of classic studio microphones can be mixed and matched with any amplifier for endless sonic possibilities.

4 EXTERNAL EFFECTS LOOPS
Two fuzz-friendly analog loops plus two fully-routable loops to integrate your favorite rack or pedal effects for additional flexibility.

TONE MASTER PRO CONTROL APP
Remotely edit, save and share presets from your laptop and browse a vast collection of presets created by other users and Fender artists.

60 SECOND STEREO LOOPER
With up to 60 seconds of stereo recording time, the looper is the perfect creative and practice partner.

Specs

Electronics

• Connection Type 1/4"

• Connectivity USB-C®

• Control Panel Navigation Control, Master Volume Control, 10 Footswitch/Encoders with LCD "Scribble Strips"

• Digital Audio Frequency Response 20 Hz - 20 kHz (+0.1/-0.7 dB)

• Effects Over 100 Quality Amp and Effect Models

• Effects Loop 4 Total

• Looper 60-Second Stereo Looper

• Other Connections 1/4" Expression Pedal 1 and 2, Amp Control

• Phantom Power +48 VDC (XLR Only)

• Power Requirements 40W

Hardware

• Effects Loop Connection Type Mono Loops (1 & 2) 1/4" Unbalanced, Mono Loops (3 & 4) 1/4" TRS Balanced (Can Be Combined into Stereo Pair)

Inputs

• Auxiliary Input Connection Type 3.5 mm Stereo

• Auxiliary Input Impedance 10 kΩ

• Auxiliary Input Max Input Level 2.4V

• Effects Loop Impedance 10 kΩ

• Instruent Input Connection Type 1/4"

• Instrument Inputs Maximum Level 5.6V (2.8V with Input Pad Off)

• Line Input Connection Type 1/4” TRS Female (Combo), Balanced

• Line Inputs Impedance 1MΩ

• Line Inputs Maximum Level 7.8V Balanced, 4.5V Unbalanced

• Microphone Input Connection Type XLR Female (Combo), Balanced

• Microphone Preamp Input Impedance 1.8 kΩ Balanced

• Microphone Preamp Maximum Input Level 4.7V

Measurements

• Product Depth 10.3" (26.16 cm)

• Product Height 3.8" (96.4 mm)

• Product Width 14.6" (37.1 cm)

Miscellaneous

• Supported Sample Rates 44.1 kHz Internal (Project Sync 44.1/48/88.2/96 kHz)

Output

• Headphone Outputs Impedance Working Range 33Ω x2 (16Ω x2 Minimum)

• Headphone Outputs Maximum Output 110mW x2

• Line Outputs Connection Type 1/4” TRS Female, Balanced (Stereo Pairs Output 1 and 2)

• Line Outputs Maximum Output Level Output 1 - 12V (Line) 3.9V (Instrument),
• Balanced; 6.1V (Line) 2.8V (Instrument), Unbalanced; Output 2 - 4.7V (Line) 2.8V (Instrument)

• Line Outputs Output Impedance Output 1 - 200Ω (Line) 290Ω Balanced, 400Ω
• Unbalanced (Instrument); Output 2 - 170Ω

Performance

• Digital Audio Bit Depth 32 Bit
