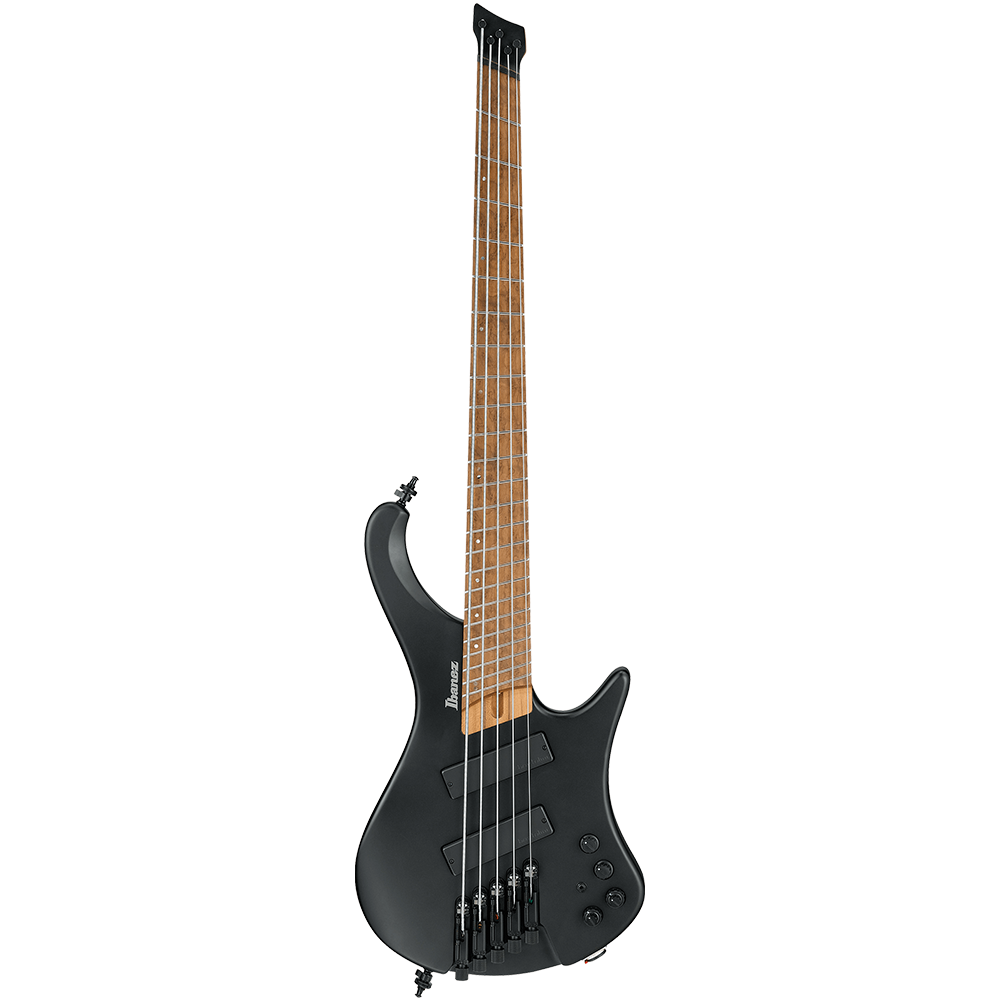

Ibanez EHB1005MS BKF Headless Bass Guitar

SPEC

• neck type EHB5/5pc Roasted Maple/Walnut neck w/Graphite reinforcement rods
• top/back/body American Basswood body
• fretboard Roasted Birdseye Maple fretboard Abalone off-set dot inlay
• fret Medium Stainless Steel frets
• number of frets 24
• bridge MR5HS bridge
• string space 18mm
• neck pickup Bartolini BH2 neck pickup(Passive)
• bridge pickup Bartolini BH2 bridge pickup(Passive)
• equaliser Vari-mid 3-band EQ w/ EQ bypass switch (passive tone control on treble pot)
• factory tuning 1G,2D,3A,4E,5B
• strings D'Addario EXL170-5SL
• string gauge .045/.065/.080/.100/.130
• hardware color Black

NECK DIMENSIONS

• Scale : 889mm/35" - 838mm/33"
• a : Width 45mm at NUT
• b : Width 74mm at 24F
• c : Thickness 19.5mm at 1F
• d : Thickness 21.5mm at 12F
• Radius : 500mmR

CONTROLS

FREQUENCY RESPONSE


OTHER FEATURES

• Recommennded Case MRB500C
• Gig bag included
• Luminescent side dot inlay
• Schaller S-Locks strap lock pins
• Ibanez custom headpieces

FEATURES


Ergonomic body design
The EHB’s headless construction and specially designed body enable the player to maintain a similar playing position whether seated or standing.


Slanted body back
The top half of the back of the body is slanted which allows the bass to rest slightly closer to the player’s body for better control and a more ergonomic feel.

Ibanez custom headpieces
Rugged yet light-weight Ibanez custom headpieces enable strings to be easily set and released by a hex wrench from the back side.


Comfortably rounded body edge, Chambered body
Its contoured, ergonomic design and chambered body make for a lightweight, well-balanced, and comfortable instrument that’s excellent for long sets or practice session.


Scooped cut on the body back
There is extra carving on the back of the body behind the lower horn for easier upper fret access.


5pc Roasted Maple/Walnut neck w/Graphite reinforcement rods
The Roasted Maple in the neck is heat-treated to increase stability, durability, moisture resistance, and tolerance of temperature changes.

Luminescent side dot inlays
Luminescent side dot inlay provides clear visibility in dark environments.

Bartolini® BH2 pickups
The Bartolini® BH2 pickups provide a tight bottom-end, punchy mid-range, and smooth response. The dual-coil style configuration maximizes articulation and a long blade pole piece widens the magnetic field, providing balanced string-to-string pickup response.


Vari-Mid 3-Band EQ w/EQ bypass switch
The Vari-mid 3-band EQ features a variable mid-frequency control which allows you to dial in an incredibly wide range of sounds. There is also an EQ bypass switch for passive operation with the treble control acting as a passive tone control when the EQ is bypassed.


MR5HS mono rail bridge w/string spacing adjustable saddles
The MR5HS bridge is designed especially for the EHB basses and features wide intonation range. Each bridge piece is independently and securely attached to the body for maximum vibration transfer, and the saddles are adjustable for string spacing +/-1.5mm, answering every bassist’s individual string spacing demands, no matter what playing style. Teflon washers are used on each tuner for a smooth tuning action.


Schaller S-Locks strap pins and Neutrik locking jack
Schaller S-Lock strap lock pins and a Neutrik locking jack hold the strap and cable securely.


Detachable Finger ramp
A detachable Finger ramp is included for comfortable finger picking.
