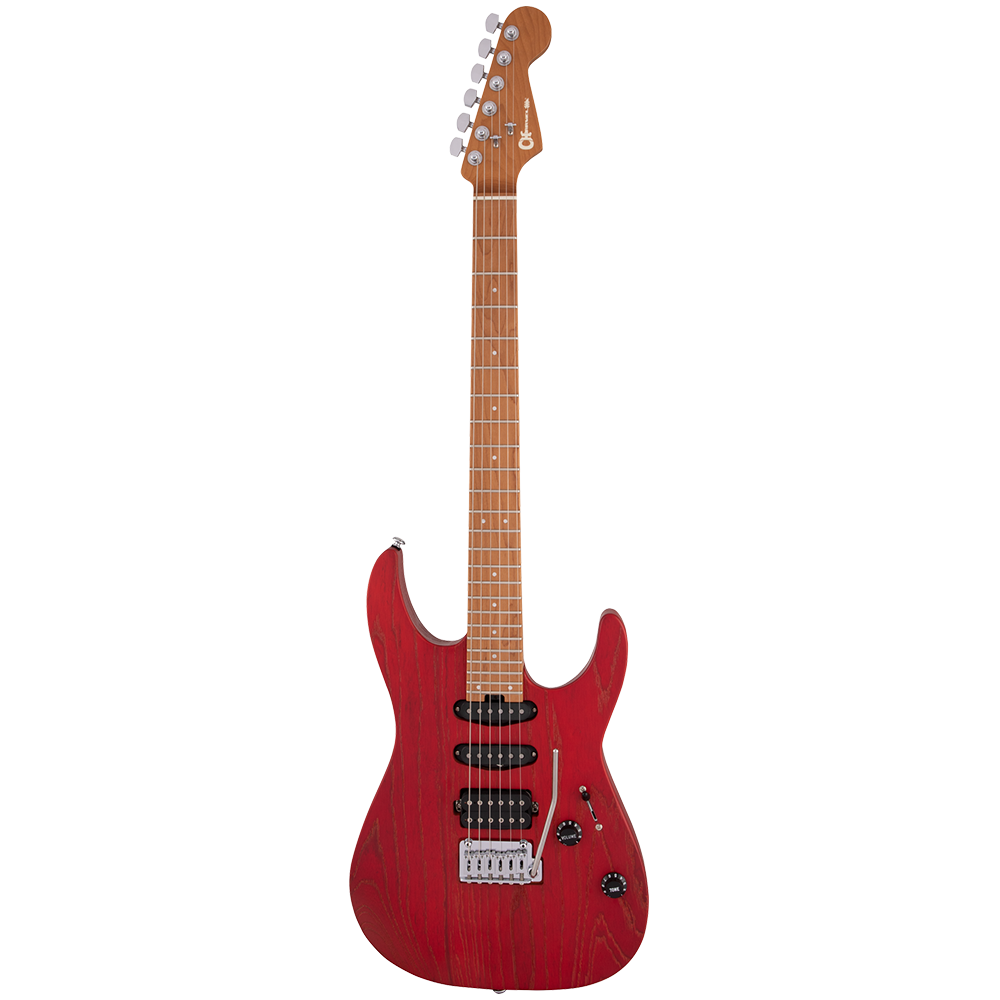

Charvel Pro-Mod DK24 HSS 2PT CM Red Ash

Featuring a sculpted shredder's cut heel and scalloped lower back bout for comfortable, unencumbered upper fret access, the ash Dinky® body is paired with a graphite-reinforced bolt-on caramelized maple neck for rock-solid stability. The “speed” neck features a silky-smooth satin finish on the back for sublime playability, Luminlay® side dots to guide your way along the fretboard on dark stages and a heel-mount truss rod adjustment wheel for convenient neck relief tweaks. Built for fast playing speeds, the 12”-16” compound radius caramelized maple fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.

An HSS pickup configuration consisting of a Seymour Duncan® Custom Full Shred™ TB-10 bridge pickup, Seymour Duncan Custom Flat Strat® SSL-6 single-coil middle pickup and Seymour Duncan Custom Flat Strat SSL-6 RWRP single-coil neck pickup proves to be a versatile tonal force with beefed up mids and articulated, crispy highs.

Taking our modern DK24 platform up a notch, this model's other premium modern features include a five-way blade pickup switch, Stratocaster®-style skirt knobs for the volume and tone controls, Gotoh® Custom 510 tremolo bridge, locking tuners and more.

Sure to impress in sound and style, this Pro-Mod DK24 is wrapped in a fiery Red Ash finish with chrome hardware.

FEATURES

ASH DINKY™ BODY
SCALLOPED LOWER BACK BOUT
SHREDDER'S CUT HEEL
12"-16" COMPOUND RADIUS CARAMELIZED MAPLE FINGERBOARD
SEYMOUR DUNCAN® CUSTOM FULL SHRED™ SH-10B BRIDGE, SEYMOUR DUNCAN CUSTOM FLAT STRAT® SSL-6 SINGLE-COIL MIDDLE AND SEYMOUR DUNCAN CUSTOM FLAT STRAT SSL-6 RWRP SINGLE-COIL NECK PICKUPS
5-WAY BLADE, VOLUME CONTROL WITH 500K EVH BOURNS® LOW FRICTION POTENTIOMETER & NO-LOAD TONE CONTROL
LUMINLAY® SIDE DOTS
HEEL-MOUNT TRUSS ROD ADJUSTMENT WHEEL
GOTOH® CUSTOM 510 TREMOLO

SPECS

GENERAL

• Model Number 2969413539
• Series Pro-Mod
• Color Red Ash
• Number of Strings 6
• Orientation Right-Hand

BODY

• Body Finish Satin
• Body Shape Dinky®
• Body Material Ash

NECK

• Neck Material Caramelized Maple
• Neck Construction Bolt-On with Graphite Reinforcement
• Neck Finish Satin
• Neck Shape Speed Neck with Rolled Fingerboard Edges
• Neck Binding None - Rolled Fingerboard Edges
• Scale Length 25.5" (64.77 cm)
• Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material Caramelized Maple
• Number of Frets 24
• Fret Size Jumbo
• Nut Material Graph Tech® TUSQ® XL
• Nut Width 1.6875" (42.86 mm)
• Position Inlays 4mm Pearloid Dot
• Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
• String Trees Fender® Standard String Guide
• Headstock Licensed Fender® Stratocaster®
• Neck Plate None - 4-Bolt Sculpted Heel

HARDWARE

• Bridge Gotoh® Custom 510 Tremolo
• Hardware Finish Chrome
• Tremolo Arm Gotoh®
• Tuning Machines Charvel®-Branded Die-Cast Locking
• Pickguard None
• Control Knobs Stratocaster®-Style Skirt
• Switch Tip Parchment
• Saddle Height Wrench Yes

ELECTRONICS

• Bridge Pickup Seymour Duncan® Full Shred™ TB-10
• Middle Pickup Custom Seymour Duncan® Flat Strat® SSL-6 Single-Coil
• Neck Pickup Custom Seymour Duncan® Flat Strat® SSL-6 RWRP Single-Coil
• Pickup Color Flat Parchment
• Controls Volume, Tone
• Pickup Switching 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup, Position 3. Bridge Outer Coil and Neck Pickup, Position 4. Middle and Neck Pickup, Position 5. Full Neck Pickup
• Pickup Configuration HSS

MISCELLANEOUS

• Strings Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons Standard
• Other Features Luminlay® Side Dots

PICKUP SWITCHING
