Line 6 Helix Multi Effects Processor

Model #: 990600104

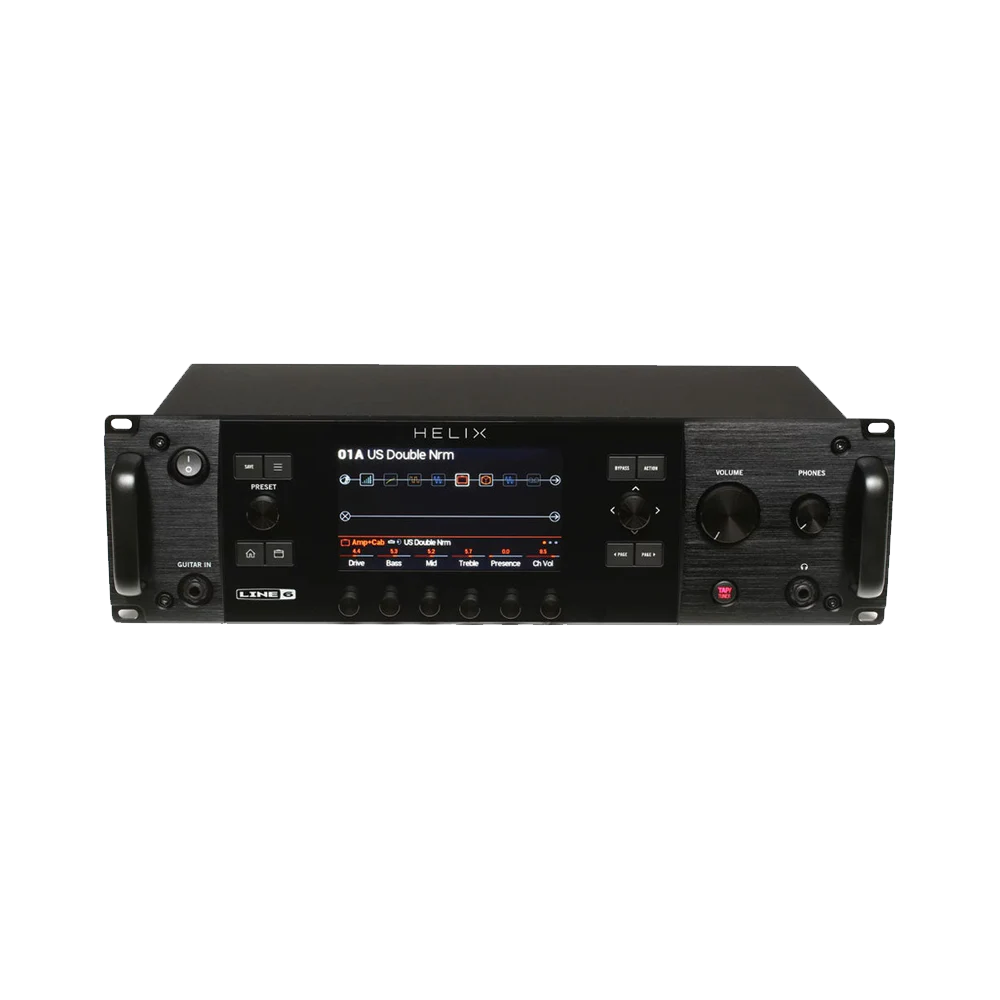

The Line 6 Helix Rack multi-effects processor reaches far beyond anything you've ever experienced. It can be a great addition to your rig, a streamlined controller for your existing system, or an incredible-sounding guitar interface for recording in the studio. It can even replace your entire effects setup! Equipped with Line 6's new HX modeling engine, Helix Rack will let you hear brand-new models of modern and vintage amps, cabs, mics, and effects, all designed to sound and feel amazing. And your rig-integration options are limitless, with Helix Rack's astoundingly comprehensive I/O and routing capabilities. Line 6 has long been at the front of the modeling revolution, and Helix Rack is the professional guitar processor Line 6 was destined to make.

Line 6 Helix Rack Multi-effects Processor at a Glance:

• Power to spare
• Up and Running in No Time
• Give Helix the Control

Line 6 Helix Rack Multi-effects Processor Features:

• Tour-grade multi-effect guitar processor
• Snapshot feature instantly recalls each of your tone elements
• Output for Helix Control floor controller
• Takes command of your Line 6 Variax guitars
• Dual DSP-powered HX modeling engine
• 50 amps, 30 cabs, 16 mics, and over 70 effects
• Editing workflow can be mastered incredibly quickly
• 6.2" 800 x 480 LCD display
• 10 inputs, 12 outputs (including four effects loops)
• 8-in/8-out USB audio interface
• Multiple expression pedal outs
• CV/Expression out
• External amp switching
• XLR input
• S/PDIF, AES/EBU, and L6 Link digital outputs

Tech Specs

• Type:3U Multi-effects Guitar rack
• Number of Effects:70 (104 with firmware updates)
• Amp Modeling:Yes
• Number of Models:62 amps, 37 cabs, 16 mics (with firmware updates)
• Analog Inputs:1 x XLR, 1 x 1/4" (Guitar), 1 x 1/4" (Aux), 4 x 1/4" (Expression Control), 4 x 1/4" (Return)
• Analog Outputs:2 x XLR, 2 x 1/4", 1 x 1/4" (Thru), 1 x 1/4" (Headphones), 4 x 1/4" (Send)
• Digital Inputs:1 x XLR (AES/EBU), 1 x Coax (S/PDIF)
• Digital Outputs:1 x XLR (AES/EBU, L6 Link), 1 x Coax (S/PDIF)
• MIDI I/O:In, Out/Thru
• USB:1 x Type B
• Other I/O:2 x 1/4" (Ext amp switching, CV out), 2 x Ethernet (Helix control, Variax in)
• Clock I/O:1 x BNC (Word Clock in)
• Rack Spaces:3U
• Height:5.25"
• Depth:9.5"
• Width:19"
• Weight:11.8 lbs.
• Manufacturer Part Number:99-050-2005
